Delcam has added a new series of options for three-axis milling and enhancements in five-axis machining to its FeatureCAM feature-based CAM software. The 2013 release also includes improvements in the turning and mill-turn modules.
FeatureCAM was the world's first feature-based programming software when it was launched in 1995. Constant development since then has ensured that the system has retained its leadership in programming speed and ease of use, while an increased range of strategies has been added to provide more efficient toolpaths giving greater productivity on a wider range of machines.
The main change to the 2013 FeatureCAM product family has been the introduction of three levels of 3D machining functionality. FeatureMILL 3D Lite offers single-surface machining with a basic range of strategies and so provides an introductory product for companies moving into 3D machining for the first time.
FeatureMILL 3D MX provides a greater number of strategies, including spiral finishing, flowline finishing and rotary machining, support for multiple-surface machining and automated feature recognition. It is aimed at companies with conventional machine tools and those that are machining softer materials.
FeatureMILL HSM also contains all of the options for rest machining, such as pencil machining and corner clearance, and high-speed machining, including trochoidal machining and Delcam's patented Race Line Machining. It maximises the benefits of any investment in high-speed mills with strategies that maximise machine productivity while protecting the part, machine and cutter from excessive wear.
FeatureCAM HSM also includes a number of new strategies. Step cutting has been added within area clearance to remove large terraces that can be left on the part when using deeper roughing cuts. FeatureCAM will now produce extra toolpaths that step back up the terrace with the existing large tool, adding extra cuts at intermediate levels.
Both roughing and finishing strategies now incorporate an "area filter" to remove small enclosed pockets within the part from the toolpath. Any attempt to cut these areas risks damage to the tool, even though it is mathematically possible to remove the material.
New five-axis strategies available in FeatureCAM 2013 include flowline machining between two curves, pencil machining and corner re-machining. These options for simultaneous five-axis machining allow a better surface finish to be achieved as well as ensuring access to more areas within the part in a single set-up.
New options have also been added to give smoother five-axis machining. A new look-ahead capability will remove any sudden tool-axis changes during automatic collision avoidance and, instead, ensure that a smooth transition takes place.

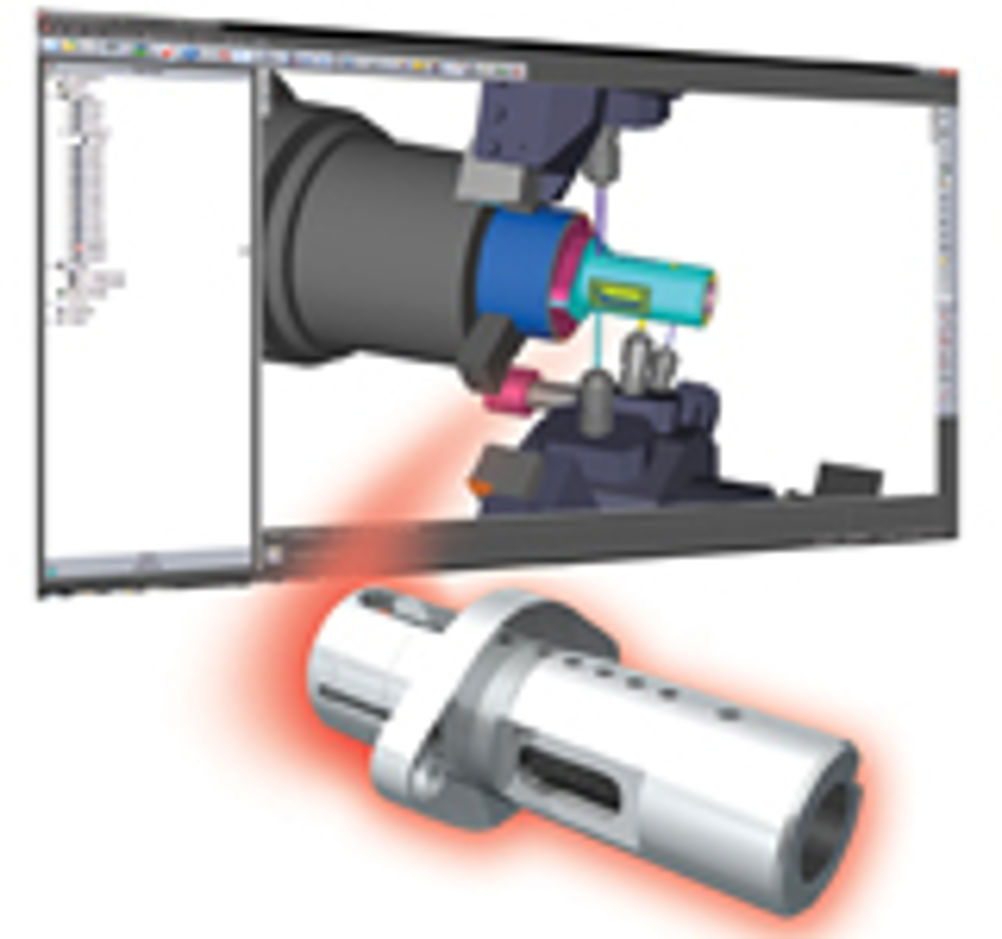

A number of enhancements have been added to FeatureCAM's turning and mill-turn modules. Definition of the initial stock and part alignment has been improved, making it more similar to the set-up process for milling, support has been added for semi-finish canned cycles and curves of revolution can now be recognised from STL models.
The options for multi-spindle, multi-turret machines have been improved by fully integrating part transfers into the FeatureCAM output. Simulation and post-processing of these operations is also supported.
