The largest machine in the range, the 3-metre bed SLX 555 with its 560mm swing over the bed, 104mm spindle bore and 3000mm between centres, now features a single door to access the working area.
Replacing the double door system previously fitted, the new layout makes access to the entire bed length much easier for operators. Its design also means a reduction in weight.
As part of XYZ Machine Tools quality procedures, every SLX lathe is ball bar tested using the latest QC20 bluetooth ball bar system from Renishaw.
The SLX range also has several productivity boosting options available. These include a four or eight position auto-indexing tool post. The eight position option features a cycloidal, zero backlash, drive system with absolute position encoder for fast and accurate tool changes, with the turret locked in position by a Hirth coupling to provide a solid connection under heavy-duty machining.

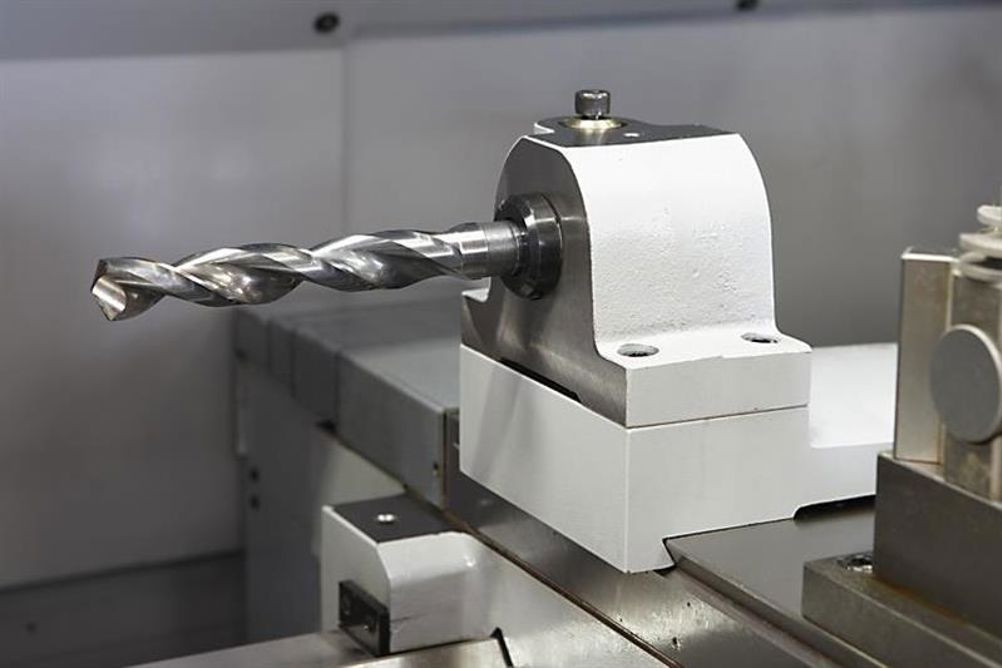

For those carrying out larger diameter drilling work, the SLX range can be fitted with an optional drilling attachment that sits on the machine crosslide.
XYZ’s ProTURN lathes benefit from upgrades and options
1 min read
XYZ Machine Tools has announced several options and upgrades for its range of SLX ProTURN lathes that will add further operator convenience and productivity.
