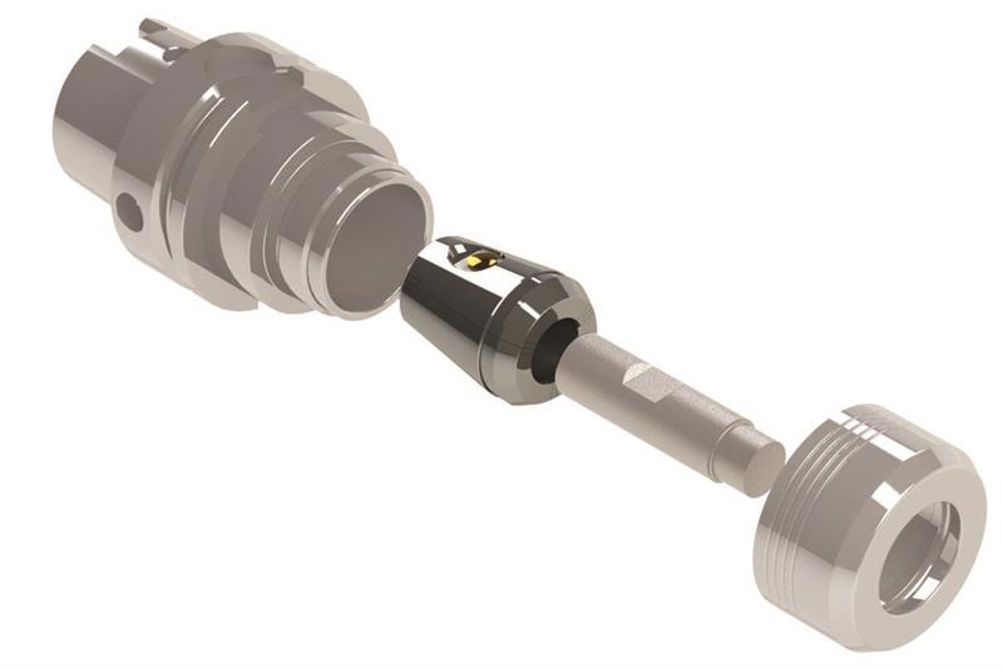

Designed specifically for use with WNT's Centro-P chuck system, Centro P.WD collets are based on the international DIN ISO 15488-B ER collet system, but feature an additional wedge-style locking system.
When a Weldon shank tool is positioned in the collet, the wedge is displaced, prior to locating on the Weldon flat. This wedge is then fixed in place when the collet is secured in the Centro-P chuck. The system is aimed at customers wanting to employ high performance cutting strategies, or high metal removal.
Collets are available in ER-32 designation in sizes of 12, 14, 16 and 18 mm, and as ER-40 designation with a 20 mm bore.
