The system works through the use of ultra-short, pulsed laser beams which are focused inside the glass to modify a narrow zone along the desired cleavage line. The modification generates intrinsic tensions to ensure the glass fractures in a controlled manner. The resultant surface is mirror-smooth and accurate to a hundredth of a millimetre – no matter whether straight or curved, says Trumpf.

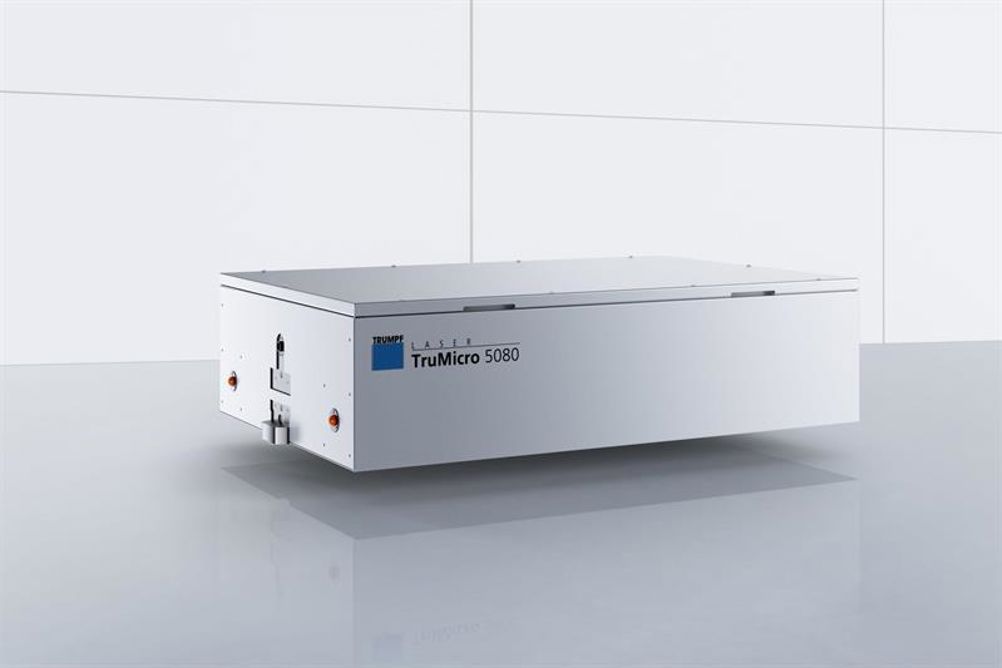

The TruMicro 5080 delivers repetition rates at up to 1,000 kHz, with a maximum of 500 micro-Joules. According to Trumpf, it is the highest energy pulse in the world for ultra-short pulse lasers in industrial use.
