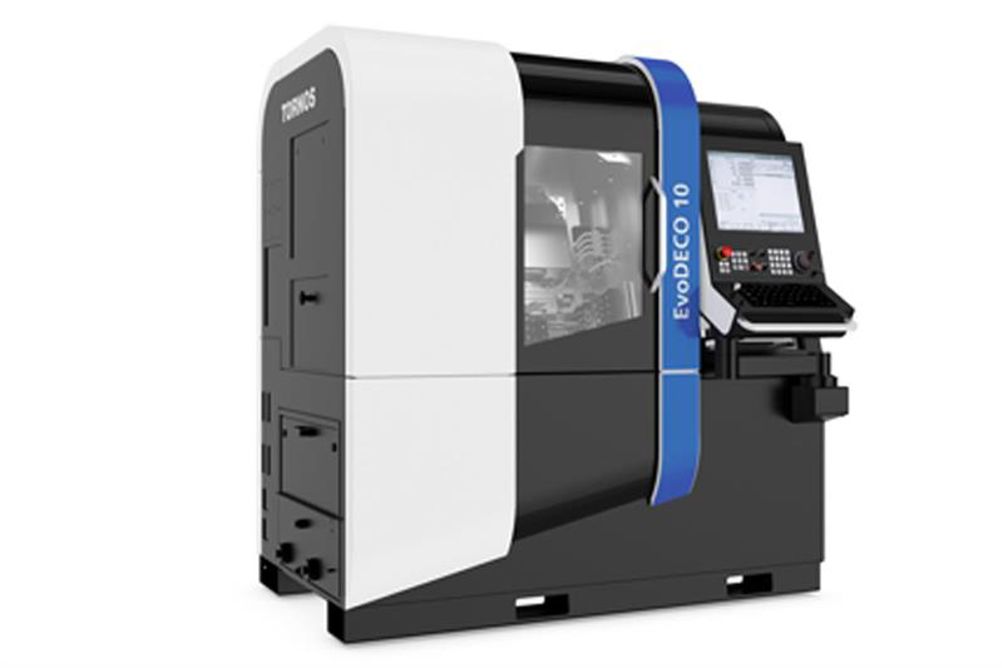

The EvoDECO 10 is available in two models, the EvoDECO 10/10 or the EvoDECO 10/8. The EvoDECO 10/10 is a 10-axis machine with four independent tool systems, whilst the EvoDECO 10/8 is a more cost-effective solution with eight linear axes and three independent tool systems. Both machines offer a length capacity of 100 mm with a 10 mm bar diameter. The main spindle generates a power output of 6.5/10.1 kW with high torque throughout the 0 to 14,000 rpm speed range. Whilst the sub-spindle matches the speed range of the main spindle, its 5 kW motor generates sufficient power for back-end working operations.
Tornos has replaced the standard bearing in the driven tool units with a needle roller bearing. This development has a superior radial rigidity that is said to make carrying out demanding milling and drilling operations possible.
