Produced in the UK, the unit is designed to be secured in a One-Lok work-holding device manufactured by Chick in the US, for which 1st MTA is the sole agent in the UK and Ireland.
Expensive fixtures and the need to change machine set-ups can be avoided, saving money and time. In smaller job shops employing 4-axis VMCs equipped with a full or indexing rotary table, where there may be only one or two people able to program the machine, the load can be lightened by having an operator of a lower skill level set up a component manually for 3-axis machining.

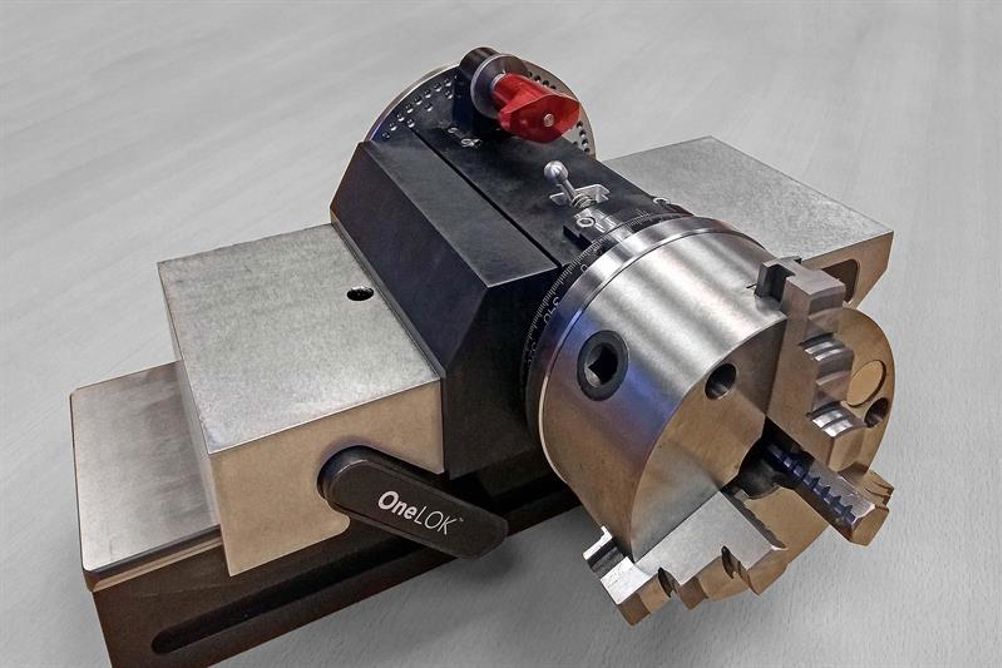

Everything about RotaVice is said to be fast. First, a One-Lok may be bolted quickly on to a VMC table. Next, positioning the moveable jaw using the integral time-saving ratchet mechanism leaves only a few turns of the handle to clamp the indexing head in a special RotaVice jaw, also made by 1st MTA, which replaces the standard One-Lok jaw. Lastly, the workpiece is secured in moments in a horizontal orientation using an array of work-holding options, which include a 3-jaw chuck.
Adjusting the angle is also rapid and accurate, and is effected by turning a circular locating plate to the required angle and inserting a pin into the relevant hole, an array of which are pre-drilled into the plate at the most common angles. In the standard configuration, 5, 10 and 45° are available. The standard plate can be changed for a specific plate to suit any job that involves the use of unconventional angles.
Another advantage of the RotaVice is that once the angle has been selected, it uses the clamping force of the One-Lok to secure the rotary angle. This force, which is much higher than that offered by standard dividing heads, allows heavier machining cuts to be taken and delivers improved surface finish, says 1st MTA.
Altering the angle for a subsequent machining operation on the same component is similarly achieved without having to re-clamp the part, thereby avoiding any loss of accuracy through tolerance build-up. Intermediate angles can be set using a rotary dial with a 1° increment scale, while very fine adjustments down to ±0.5° can be made using the toggle lever mounted at the top of the unit.
Importantly, RotaVice has a large through-bore with a taper and an internal thread, both of which can be configured for use with chucks, mandrels, special fixtures and backstops.
