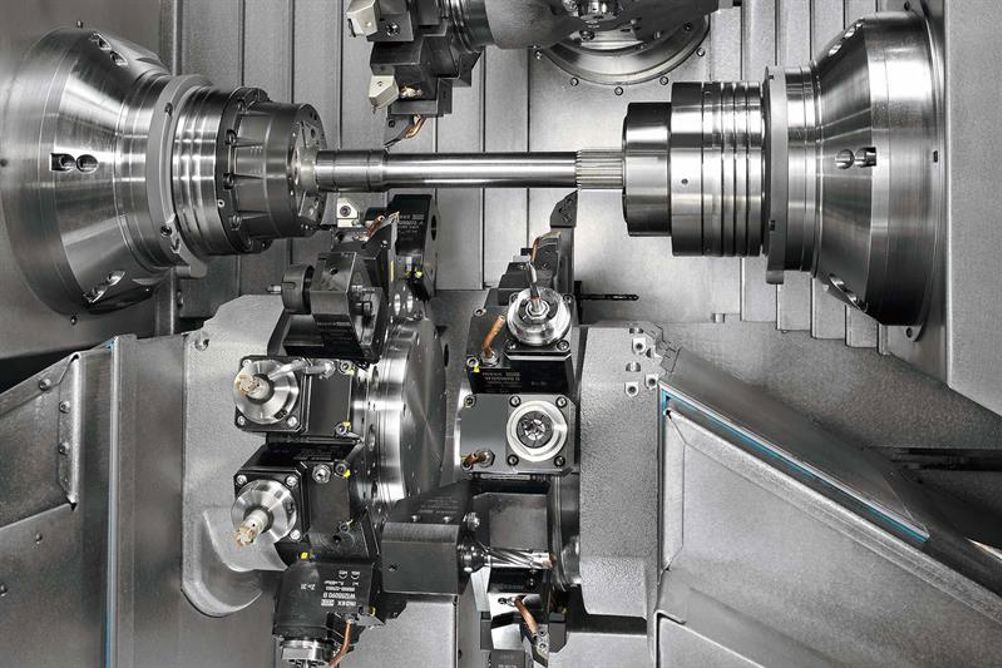

The machine’s two lower turrets are arranged in mirror image, each having a ±45 mm Y axis. They contain 14 tool stations, all of which can be equipped with live tools. The upper tool carrier deploys a 14-station turret and an integrated, HSK-A40 milling spindle. It has ±65 mm of Y-axis movement and a 360° swivelling B axis.
Three-turret Index G200 turn-mill centre can slash cycle time by 30%
The second generation Index G200 turn-mill centre is now available through Geo Kingsbury. The distance between centres is up from 400 to 660 mm, a second tool carrier has been added below the spindle centreline, reducing cycle times by 30%, and the speed of the B-axis milling spindle has been increased from 2,000 to 7,200 rpm. The G200 three-turret lathe is aimed at the complete machining of bar stock up to 65 mm diameter and chuck parts up to 165 mm diameter.
