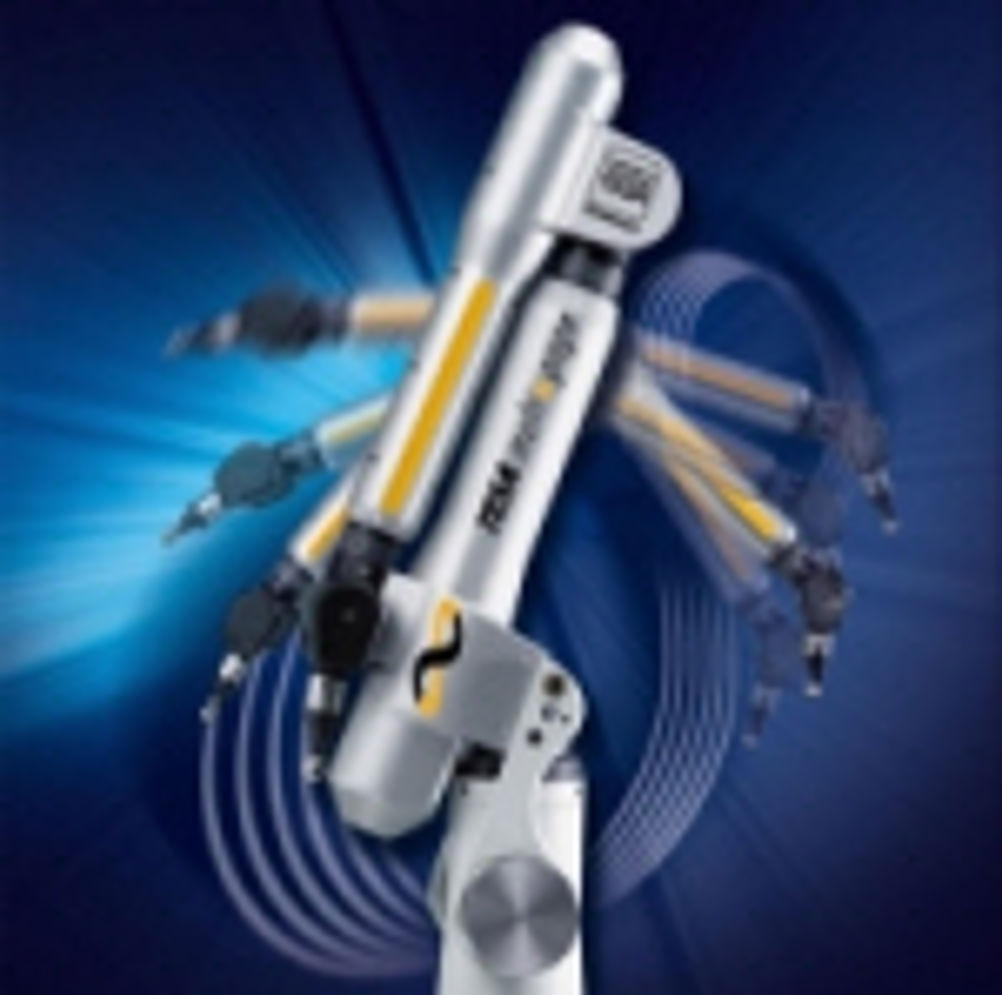

The TESA MultiGage is a portable, precision CMM with a 1.2 m measuring volume ideal for quality control applications on the machine shopfloor.
The 6-axis MultiGage is used to measure moulds, parts, tooling, castings, and more.
Its quick-mount system enables a quick setup for on-demand inspection of parts or assemblies on a machine tool or any location on the shop floor.
The MultiGage's plug-and-play probes and ultra-intuitive software interface translates into a fast learning curve for operators. Detailed measurement reports are generated automatically.
The product starts with the functionality of a 3D height gauge and adds a multitude of new features, plus high accuracies. The CMM can do the job of many handheld tools, and streamlines the workspace of the smaller companies, it is claimed.
MultiGage can be mounted directly onto a machine tool, and the user can inspect parts without removal. After each part inspection, the software automatically generates detailed measurement reports. Operators are not required to have metrology knowledge.
Its counterweight design eliminates operator fatigue and assures the same high accuracy over the full range of measurements. A new ergonomic wrist with intuitive and easy to-reach buttons is comfortable to use, and increases operator productivity.
Using TESA Swiss-made multi-wire connectors, the system's automatic probe recognition feature is combined with a proven, robust kinematic joint connection. MultiGage electronic probes are automatically recognised and identified by the software, requiring no recalibration of probes when changing from probe to probe.
