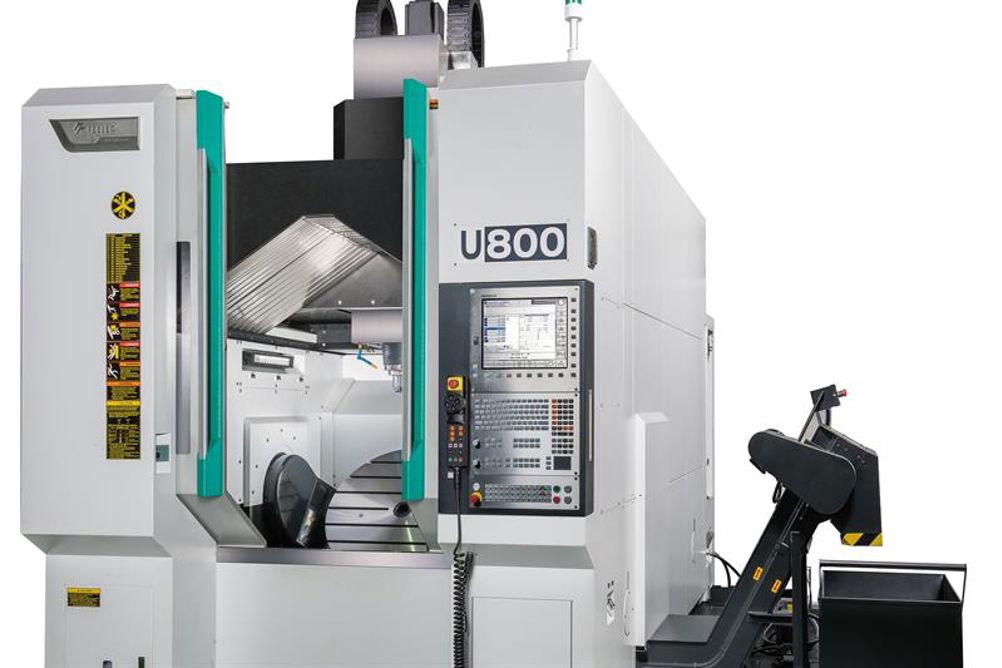

The Feeler U800-5AX gantry-type 5-axis machining centre is now available in the UK from TDT Technology. Pitched at high accuracy, fine finish applications, the machine boasts a gantry structure together with U-shaped base and column, helping enhance stability. Furthermore, the 800 mm diameter swivelling/rotary table is capable of supporting loads up to 1,200 kg. Tilt in the A-axis extends from -120 to +120°, with full 360° rotation in the C-axis.
The U800-5AX is configured to offer a separated design of the linear and rotary axes, thus making it easy to compensate for errors of radius in the rotating axes, for example.
A rapid traverse rate of 48 m/min in the linear axes is supported by a 12,000 rpm direct-drive spindle. THK roller-type linear guides and a horizontal-type 32-tool magazine are among additional features. X, Y and Z travel are 800 by 935 by 640 mm, respectively.
