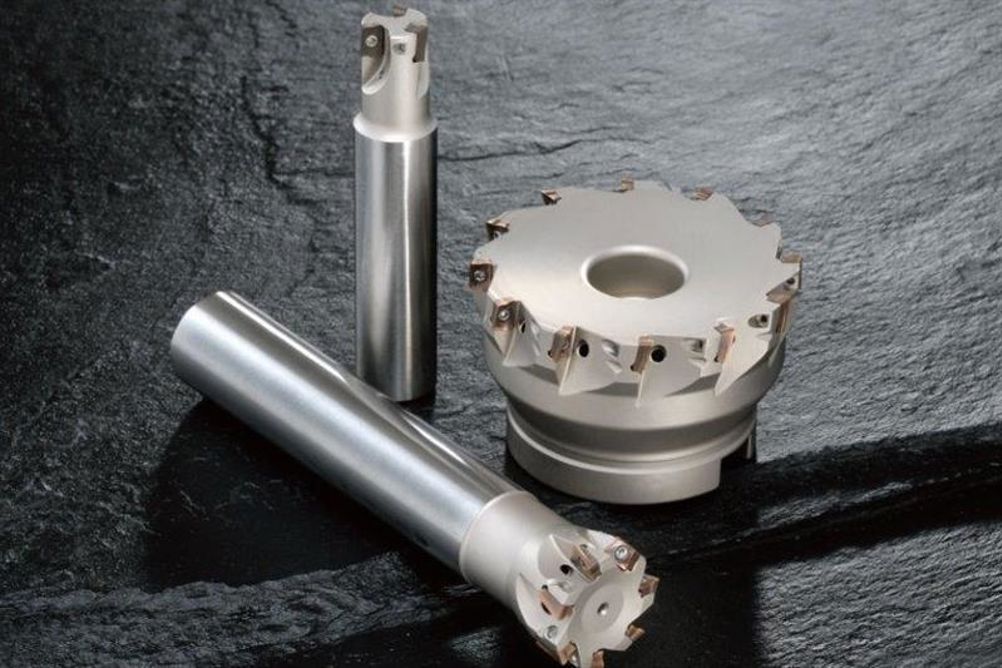

The three cutter body designs incorporate Short Type ‘E’, Short Type ‘EL’ and Shell Type ‘F’ that use a newly developed, smaller Sumitomo AXMT06 insert that has a high rake ‘wave’ style precision cutting edge.
Inserts can be specified from substrates ACP, ACK and ACM, and three chip breaker geometries -L with 25°, -G with 20° and higher edge strength -H which has 5°.
Short Type ‘E’ is available from 10 to 25 mm diameter and has between two and seven insert pockets. Short Type ‘EL’ in diameters between 10 and 20 mm has between two and four teeth, while Shell Type ‘F’ has outside diameters between 32 mm with eight teeth, to 63 mm with 14 teeth.
