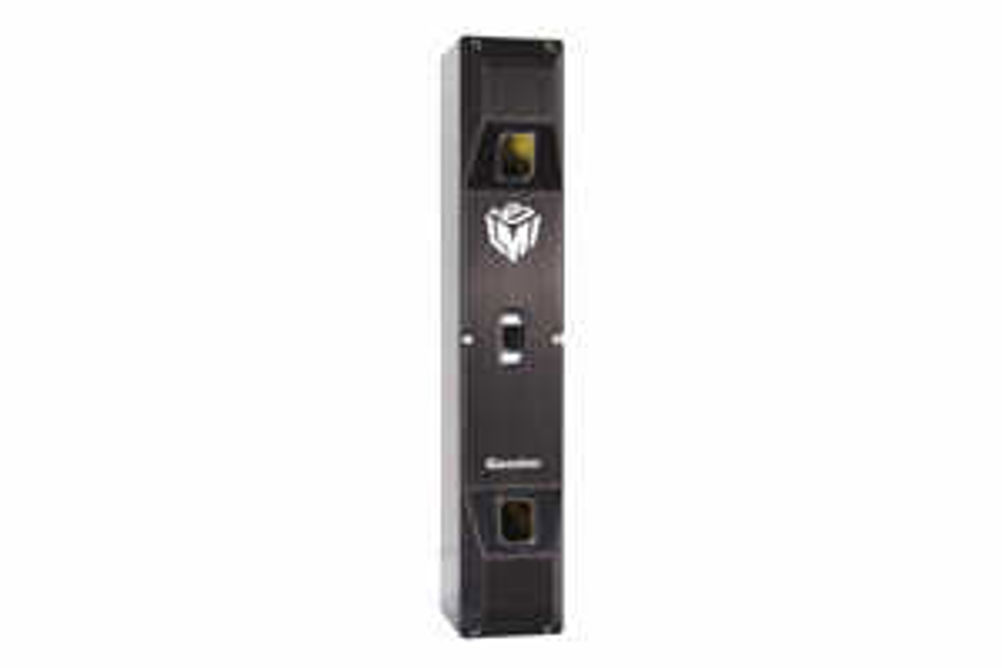

Stemmer offers all-in-one Gocator 3300 3D smart snapshot scanner for stationary objects
1 min read
The Gocator 3300 series of 3D smart snapshot sensors from Stemmer Imaging are suitable for a wide variety of non-contact, in-line inspection applications where objects must remain stationary. They combine 3D point cloud acquisition and a rich set of volumetric and specific 3D feature measurement tools in a single industrial package.
The Gocator 3300 features an integral structured blue LED light projection illumination source with stereo scanning technology that allows 3D point clouds to be captured in a single snapshot, even under challenging ambient light conditions. It performs high resolution non-contact measurement at up to 5 Hz.
In common with other Gocator products, an all-in-one design puts everything needed for set-up, measurement and control in one web-enabled, pre-calibrated package. Gocator can work with any computer and operating system without any additional software. Built-in tools provide a full suite of measurement capabilities to turn 3D data into real-time measurements to solve most inspection challenges. Specific measurement tools include rectangular opening, circular opening, slot, cylinder, threaded stud, corners, edges, and gap and flush.
Gocator's IP67 housing, small size and a weight of less than 1.5 kg mean that it can fit into small spaces and be mounted on robots.
