Providing stability to the workpiece, parts being machined can be clamped between clamping jaws, while the drill chuck holds the tool in place – a factor which is particularly important for fast-moving machines to ensure precision and safety.

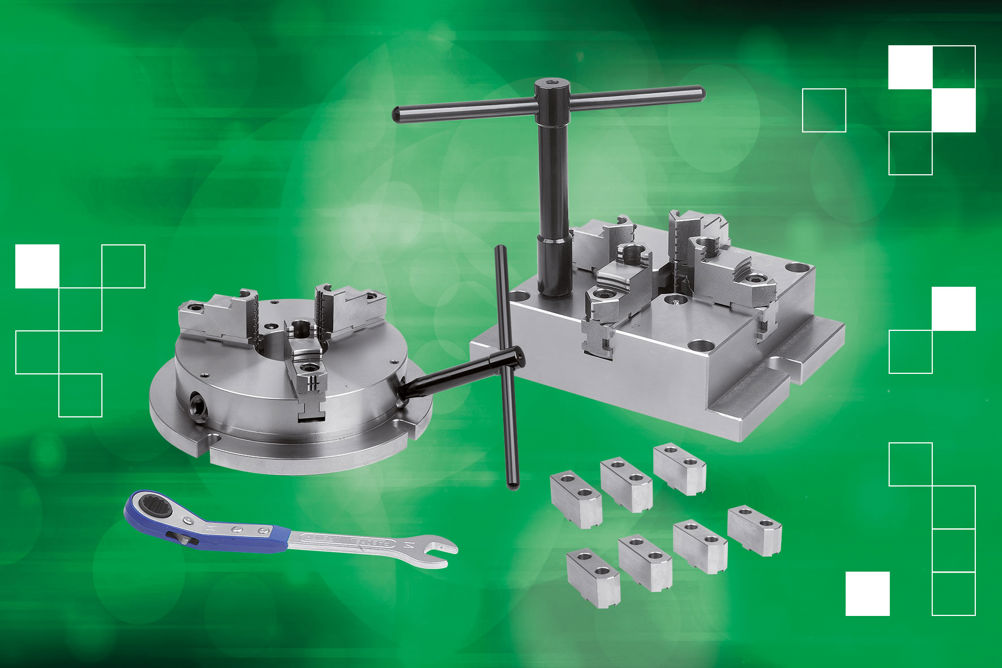

The 3-jaw chuck from norelem has three clamping jaws, enabling round, triangular or hexagonal workpieces to be securely clamped in the lathe. Alternatively, the 4-jaw chuck can be used to clamp a variety of other shapes, including four, eight and twelve sided workpieces.
The flexible arrangement of the clamping jaws in hard and soft design allows workpieces of different sizes and shapes to be easily clamped from the inside or outside using a hexagonal wrench. To create a synchronous movement of the clamping jaws and ensure consistent clamping force, a slewing ring located in the chuck and the rotational movement of the threaded spindle, creates a moveable base for the jaws to operate. To maintain reliable function and clamping force, regular lubrication of the components is essential via the optimally positioned lubrication system.
The advantages of norelem jaw chucks
Quick and easy to operate, norelem jaw chucks have a flat design and a large through-hole for clamping bar material. The base body of the jaw chucks is made of ground steel, as are the clamping jaws which use hardened and ground steel, enabling a repeatability of 0.02mm in centric clamping. Soft jaws can also be screwed onto the base jaws to generate individual clamping contours and diameters.
Stationary 3-jaw chucks are available in four different diameters from 220 to 370mm and can achieve a clamping force of up to 44kN. Stationary 4-jaw chucks are available in four different sizes with a width of 215 to 38mm, with a clamping force of up to 25kN.
