The latest L20 range is available as a standard 5-axis Type-VIII with 37 tool positions. A mid-specification Type-X has 44 tool positions and the additional flexibility created by a -Y2 axis for the back spindle, while a 7-axis Type-XII also has a programmable, swivelling 135° B axis.

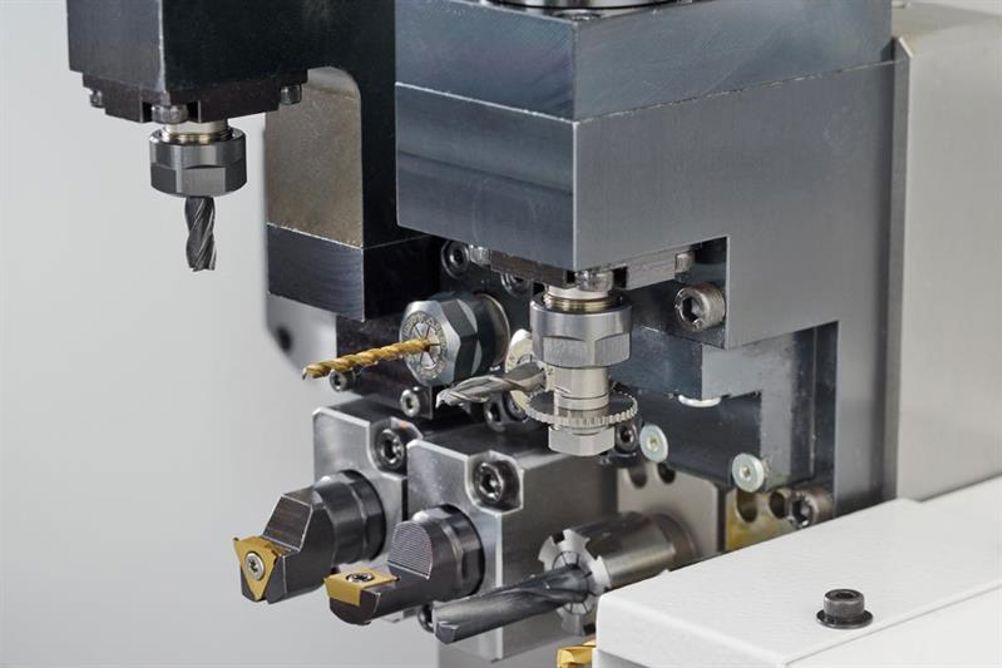

In addition to a back toolpost, the machines incorporate independent opposite and gang toolposts that create tandem tool motion to the machine’s overlapping process capability.
The main spindle is powered by a 3.7 kW, 10,000 rpm motor, while the back spindle offers 1.5 kW, 8,000 rpm.
