Schunk cuts inventory costs with adjustable ADR jaw turning disc sets

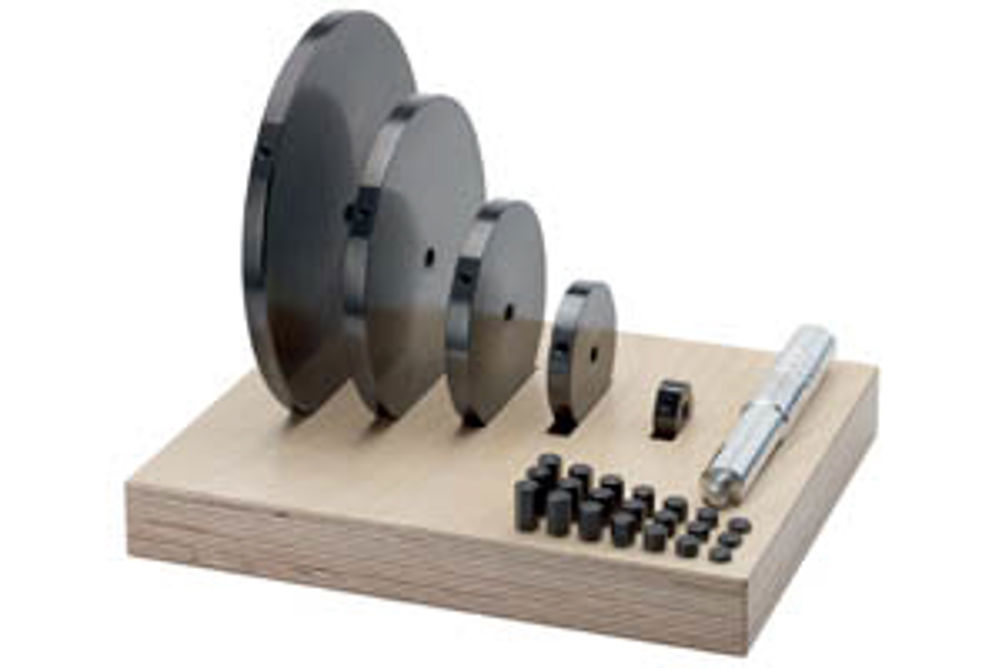

Schunk's compact, light and ADR sets of jaw turning discs are designed to make the precise turning of soft chuck jaws a simple and cost effective process.
With the Schunk ADR discs, only one set of turning discs is required as the diameter of the discs can be increased in 2 mm increments via three bolts. These bolts are screwed onto the circumference of the discs prior to clamping in the jaws.
Since fitting holes are no longer required, the jaw turning discs can be used in a plug in and work manner. For a precisely adjusted intermediate diameter, the bolts can be milled to suit the requirement and a replacement can be re-ordered as a spare part. The sets of jaw turning discs are available in two diameter ranges, from 125 to 250 mm and from 250 to 520 mm.
On request, the ADR discs can be supplied in a handy transport box.
