Rego-Fix develops micRun clamping system for ER collet toolholding
Rego-Fix has developed the micRun high precision clamping system for its ER collet toolholding product which provides an overall system accuracy of = 3 µm at 3XD.
Using the Rego-Fix micRun it is possible to clamp up to 16 different tool diameters. It is available in MR 11, 16, 25 and 32 sizes and can be used to clamp tool shanks with diameters ranging from 1 to 20 mm. The high precision collets are designed with a nominal diameter and an h11 tolerance.

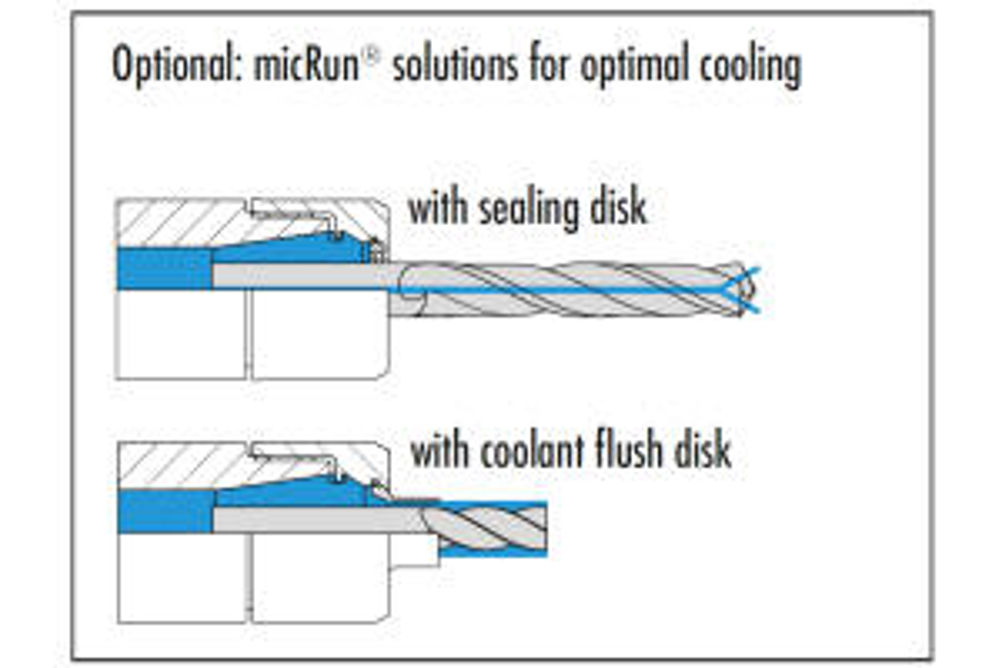

Reg-Fix sealing discs can be used for internal cooling, or coolant flush discs used for peripheral cooling for applications with high precision clamping nuts. The system can be used with a coolant pressure of up to 150 bar.
The special coating of the rotationally symmetric clamping nut creates a higher clamping force. Vibration damping characteristics of the overall system are achieved by the different modulous of elasticity of individual components (holder, collet and clamping nut). All parts are finely balanced.
