Radan 2015 from Vero offers 180 enhancements
The latest release of Radan from Vero Software includes enhanced functionality to ensure imported 3D files retain accurate information, resolving manufacturing issues throughout the production process, including at the press brake.
A number of the 180 enhancements in Radan 2015 help bring all aspects of the software together – CADCAM, Radbend, Radm-ax, Radtube and the logistics products.

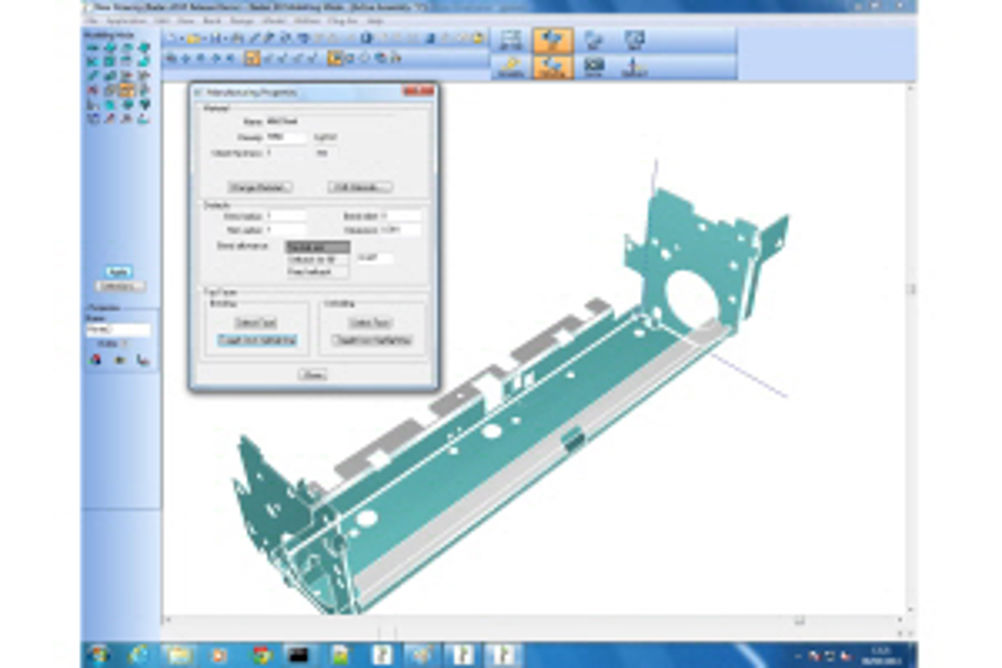

Among the important updates in Radan 2015 is strengthened 3D translation procedures, which are said to import information more consistently. The routines for calculating the thickness of imported parts automatically have also been redesigned, giving faster and more accurate results, while automatic face selection now applies to unfolding.
The bend parameters used by Radan 3D to unfold parts can now be changed using a new editor in the Unfolding Dialog, by simply sliding points on the graph to adjust the values.
