According to Perceptron, by combining the stability of the Coord3 Universal CMM with the Revo-2 5-axis measuring system, CMM dynamic error is minimised for high speed probe motion since all part feature scanning motion takes place within the Revo-2 head.

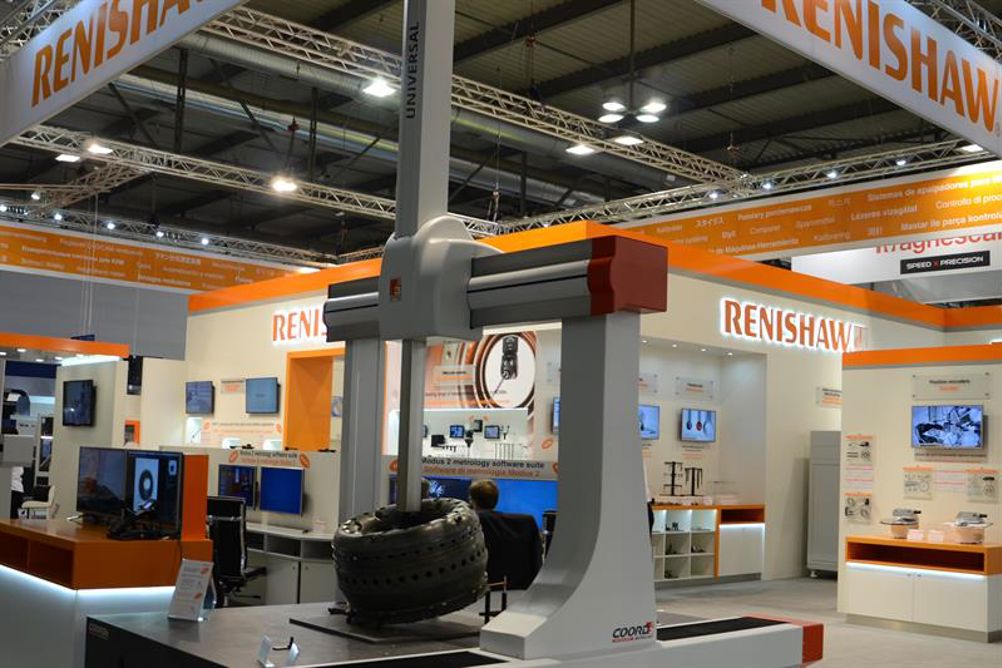

The Coord3 Universal CMM has a monolithic baseplate with inverted dovetail guideway and a 90 by 90 mm Z-ram section. Direct axis drives, using toothed drive belts, are said to provide vibration-free motion with zero hysteresis.
If required, Universal CMMs can be equipped with an optional SZP (Safety Zone Protection) system that uses laser scanners to monitor the defined protection zone when the CMM is in high speed automatic measuring mode.
The Universal range accommodates part sizes up to 3,000 by 1,500 by 1,200 mm.
