PartMaker packs in more productivity

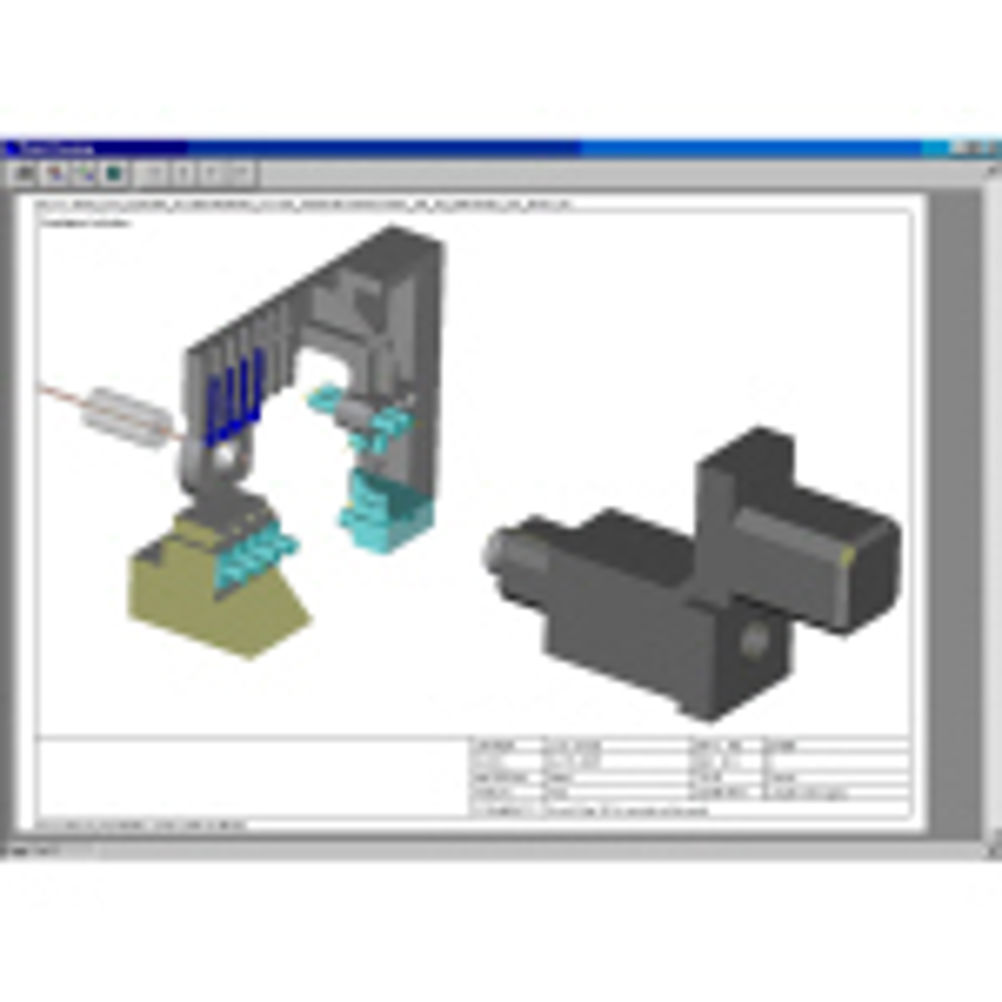

The main focus of Version 8.5 of PartMaker CADCAM software is a significant improvement to commonly-used CAD and CAM functionality. The version also marks the introduction of the PartMaker Documentation Wizard, an optional module that allows the user to create, preview and print documents incorporating multiple views. PartMaker Version 8.5 gives users the ability to create dimensioned drawings in manner that is remarkably intuitive and simple. The “smart” dimensioning tools enable users to create horizontal, vertical, linear, circular and angular dimensions in every face window separately by picking geometric entities. Time saving “Flexible” Dimension combines horizontal, vertical and linear dimensions in one icon. Free-floating Notes and Notes with Leaders are also supported. Dimensions and Notes can be edited and special symbols inserted. Version 8.5 also includes the ability to link CAD to CAM to update automatically programmed features when a geometry change is made. Toolpath profiles can now be modified once they have been created and recently-used files can be accessed automatically from within the software. The software’s printing and shopfloor documentation facilities are also much improved.
