Highlights of hyperMILL 2017.2 from Open Mind Technologies include a new feature for the fast detection and programming of T-slots. With just a few clicks, T-slots can be produced efficiently, with two types of feature recognition possible: 'T-slots' and 'Pockets with bottom and T-slots'.
The 3D machining method 'Rest material roughing' is a particularly prominent feature in the new version with a further optimised infeed strategy. The option 'Use infeed optimisation' calculates the optimal infeed value in conjunction with the 'Additional chip thickness and depth’ values. This allows users to adjust machining parameters to the condition of the tool. The key advantage is that tools with long cutting lengths can be optimally utilised and precisely controlled by using the 'Maximum infeed' parameter.

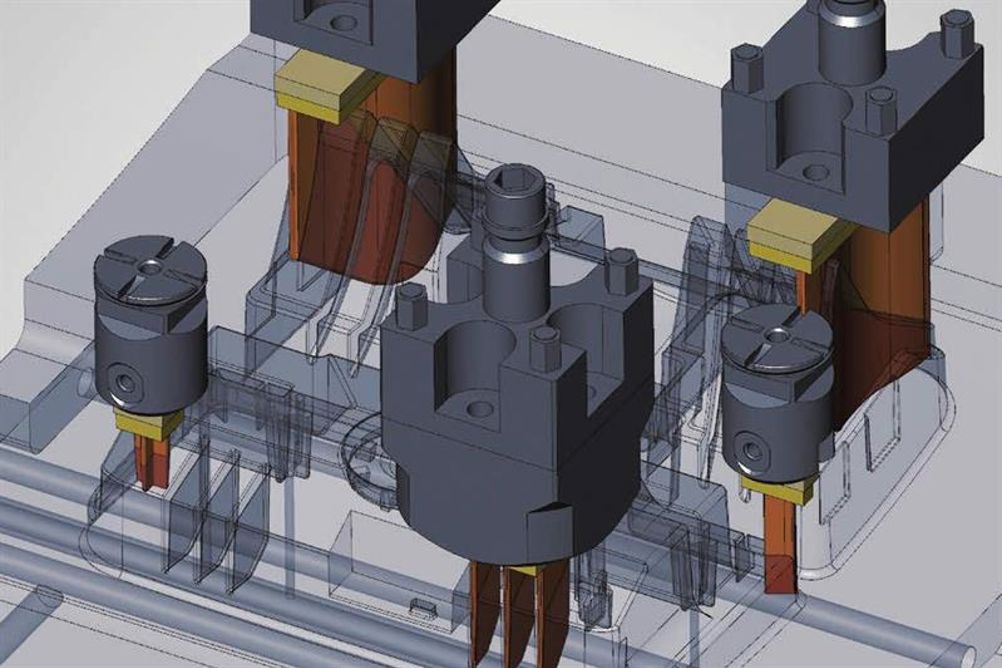

As CAD software that has been specially developed for the needs of the CAM programmer, hyperCAD-S is available to hyperMILL users. The innovation in version 2017.2 is the hyperCAD-S Electrode module. This enables the fast construction of electrodes. An automated and comfortable process ensures the easy derivation of the electrodes from the faces of the component geometry to be eroded. With just a few clicks and without any special construction knowledge, the electrode can be generated.
Once the programmer has selected the faces on the workpiece, hyperCAD®-S creates corresponding collision-free electrodes with the necessary extension of the electrode faces and the derivation of raw material, as well as the holder. The seamless transfer in hyperMILL is based on geometry and technological data. The CAM system supports the user with its own dialog window and feature type during the electrode programming. All of the important technology data is transferred directly from the hyperCAD-S electrode module into the feature information. This simplifies programming and avoids errors.
Further innovations in hyperCAD-S are the user-driven chain selection and the positioning of components with the help of relationships. For example, elements such as clamping jaws can be moved linearly or radially towards a central point between each other.
The command ‘Display statistics' has now been added to the hyperMILL SHOP Viewer. This visualisation solution for the workshop allows users to view CAM and CAD dat,a and to simulate data relevant to production, directly next to the machine. As a result, important information, such as machining times or the number of tool changes, can be seen by the users in the workshop.
