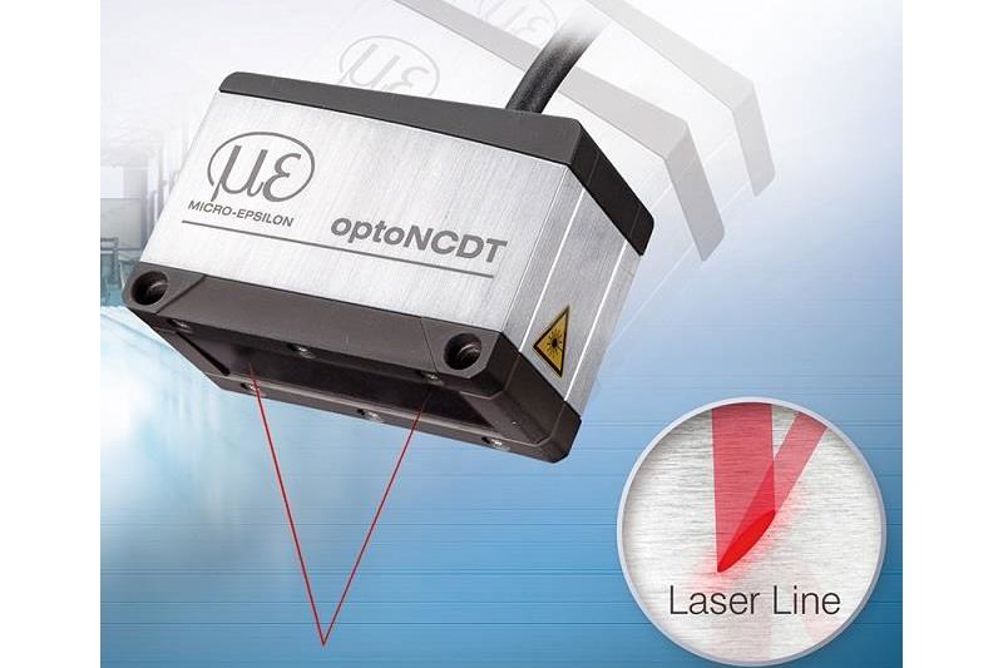

Ideally suited for both dynamic and high resolution measurement tasks, the optoNCDT 1900 LL is designed for distance measurements on shiny, metallic, rough and structured surfaces. A special cylindrical lens expands the conventional point of light into an oval-shaped light spot (small laser line). Optical averaging via the oval light spot compensates for any unevenness of the target surface.
The oval-shaped light spot and intelligent software algorithms filter out disturbances caused by surface roughness, indentations or small holes on the surface. It also helps compensate for the laser penetrating into the surface.
The laser line reveals its major strength in measurement tasks that involve a pure distance change in the z-axis. With movements in the x- or y-axis on the target, the measurement values are more stable than those from comparable point laser sensors.
More optoNCDT 1900 measuring ranges
The optoNCDT 1900 LL is available in measuring ranges of 2mm, 10mm and 25mm. Micro-Epsilon has also expanded its optoNCDT 1900 series of point laser sensors with new additional measuring ranges. The sensor is now available in seven versions with measuring ranges of 2mm, 10mm, 25mm, 50mm, 100mm, 200mm or 500mm.
With its unique combination of speed, size and performance, the optoNCDT 1900 is suitable for a wide range of measurement tasks in automation, machine building, robotics, automotive production, 3D printing and coordinate measuring machines.
The sensor itself has dimensions of 70 x 31 x 45mm and weighs just 185g. The measuring rate is continuously adjustable up to 10kHz and can be individually adapted to suit each measurement task. Highly flexible cables and a robust IP67 protected aluminium die cast housing make the sensor ideal for industrial use. A compact sensor housing with innovative mounting sleeves ensures a repeatable sensor position and alignment to the target.
Standard features make the difference
The optoNCDT 1900 series uses the newly developed Advanced Surface Compensation (ASC) algorithm that allows it to operate almost regardless of the target material and colour. The exposure time or amount of light produced by the laser sensor is optimally matched to the reflection characteristics of the target surface, which enables reliable measurements of difficult, changing surfaces.
The sensor is extremely resistant to ambient light interference and so can be used in high illumination environments including those situations where lasers are combined with Vision Systems and their associated LED lighting. The new software algorithms compensate for ambient light up to 50,000 lux, which means operation in direct sunlight is also improved.
Using the Micro-Epsilon web interface, the optoNCDT 1900 is easy to set up and use without requiring any installed operating software. The settings for the measurement task can be quickly selected using application-specific, predefined presets, which enable rapid, straightforward set up and help to optimise the sensor for specific tasks.
Data output is via analogue or digital RS422 interface. By using the Micro-Epsilon IF2030 interface module, EtherNet/IP and PROFINET are also available.
Glenn Wedgbrow, business development manager at Micro-Epsilon UK, said: “The expansion of the optoNCDT 1900 series and the new 1900LL range of laser line triangulation sensors allows Micro-Epsilon to help customers solve almost every type of industrial distance, displacement and position measurement task. The combination of enhanced performance, compactness and wide range of new features result in a range of laser sensors that set new benchmarks for advanced automation tasks.”
