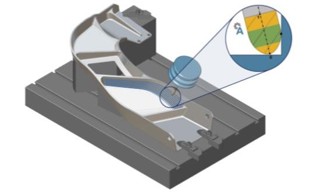

Custom tool shape for roughing (pictured above)
With the new feature for creating generic revolved tools, operators can customize the shape of the cutting and non-cutting parts of the tool for all triangle mesh-based roughing strategies. Customized tools avoid over-simplifications because they take specific features of the tool shape into account during the toolpath calculation to deliver a realistic simulation of the material removal process.

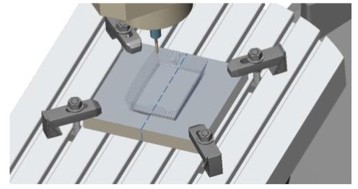

Automatic tool axis control
This new feature for multi-axis finishing adds a new mode called “Automatic” to the tool axis control. In automatic mode, the contact point as well as the lead and lag angles are automatically defined according to each available tool. This reduces programming time and simplifies tool axis definition.

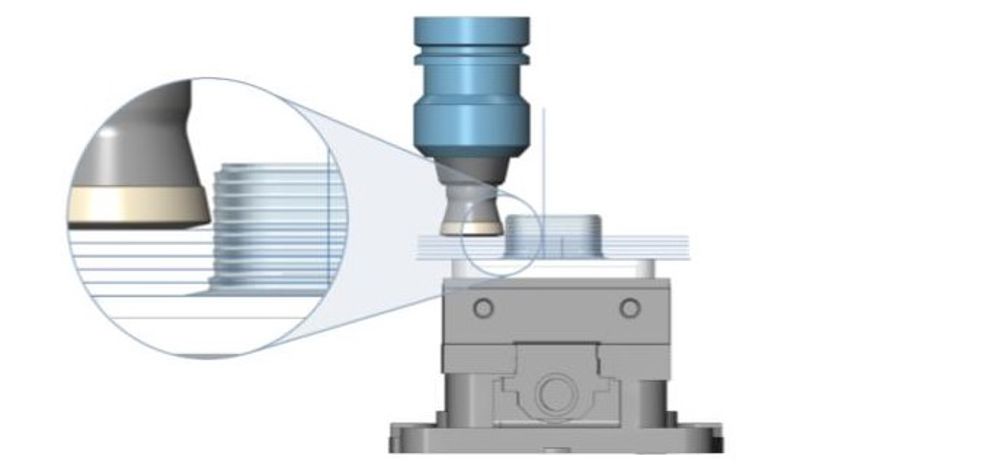

RTCP by vectors
The RTCP ON command in the ModuleWorks Machine Simulation has a new option called “by vectors”. Between any two moves, the Machine Simulation interpolates the tool’s movement to ensure the tool tip points are located on a line and the tool vectors are located on a plane. The size of the interpolation steps can be controlled, and the command requires no machine kinematic knowledge, making it straightforward to use.
Further details about the ModuleWorks 2022.08 release are available in the latest ModuleWorks YouTube videos: What’s New in ModuleWorks 2022.08 The ModuleWorks 2022.08 release is available now for download from the ModuleWorks website.
