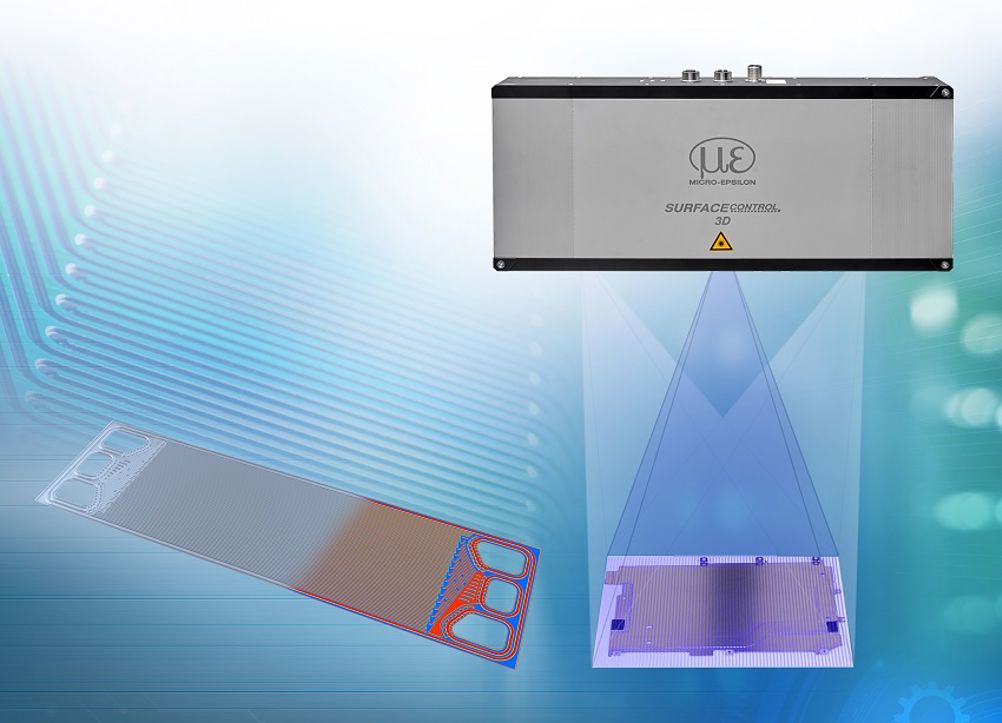

The surfaceCONTROL 3xx0-240 offers a larger measuring range of 240 mm and a measurement area of up to 245 x 180 mm. The sensor delivers the best measurement results at a z-axis distance of between 340 and 540mm.
The surfaceCONTROL 3xx0-240 is a 3D snapshot sensor with a compact design and extremely high resolution in the z-axis. With its high repeatability combined with the larger measuring area and measuring range, the sensor sets a new benchmark in high precision 3D measurement technology.
The surfaceCONTROL 3xx0-240 is available in all classes and models of the surfaceCONTROL 3xx0 series, i.e. the surfaceCONTROL 3D 3200 and surfaceCONTROL 3D 3500 ranges, with each offering a different measuring area and depth of field. Both models are fully integrated industrial sensors that are protected to IP67 with passive cooling (active cooling is available for higher operating temperatures).
The surfaceCONTROL 3D 3500 offers the highest z-axis repeatability of up to 0.4 µm and best z-axis resolution of 1.0 µm. A high data processing speed of up to 2.2 million 3D points per second enables the sensor to increase productivity in the respective application.
The surfaceCONTROL 3D 3200 is a more affordable version of the surfaceCONTROL 3D 3500, but still offers many similar technical performance benefits. The surfaceCONTROL 3D 3200-240 offers a high z-axis repeatability of up to 0.6 µm and a high z-axis resolution of 1.5 µm. With data acquisition times from 0.3 s, the sensor is suitable for many industrial applications.
The surfaceCONTROL 3xx0-240 is suitable for a wide range of flatness measurement, coplanarity measurement and surface defect detection applications, including flatness inspection of circuit boards; planarity inspection of unpopulated PCB substrates; completeness check of electronic components on fitted PCBs; 3D measurement of high precision mechanical parts; width, tilt angle and position measurement of rivets; detection and evaluation of breaks on clutch discs; 3D text recognition of embossments that cannot be solved using 2D image processing due to lack of contrast; inspection of height and thickness of adhesive beading on smartphone shells; and determination of shape deviation defects on injection moulded parts.
