Levellers and straighteners
1 min read

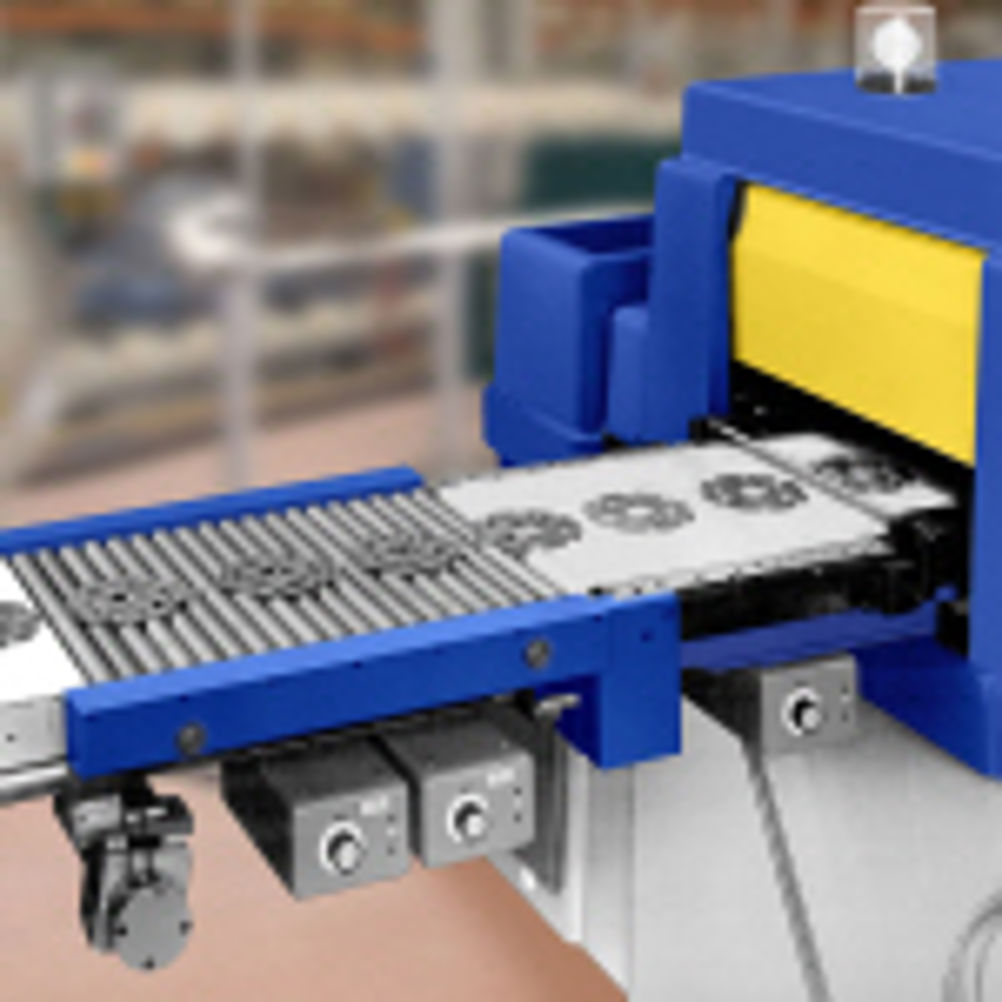

Two new series of component part leveller/straighteners from Swiss coil processing equipment manufacturer Soprem Automation AG are designed to correct any deviations in flatness caused by inner material tensions, which can occur during punching, laser or plasma cutting, hardening, nibbling, shearing and coating of steel, aluminium, copper, brass, bimetallic and special alloys.
The Schubert and Soprem leveller/straighteners are ideal for use in industries making building industry components, electro technical parts, mechanical and automotive components, perforated parts, drop wires as well as sawing and cutting tools.
The Schubert equipment using the latest drive and control technology are available with either 19 by 6mm diameter leveller rolls to straighten material thickness from 0.5 mm to 1 mm and up to 23 by 45 mm diameter leveller rolls for material thicknesses from 0.5 mm up to 8 mm. Both models can handle parts from 5 – 630 mm wide and up to 2m long.
The Soprem low-cost leveller/straighteners are hydraulically powered to save energy with reduced mechanical parts deterioration for a longer working life. They have 19 by 12mm up to 19 by 35mm diameter leveller rolls to straighten material thicknesses from 0.5 mm up to 4 mm and parts from 5 mm up to 450 mm wide in lengths up to 2 m.
Both the Schubert and Soprem design leveller/straighteners are available with automatic part feed and part ejection as an option.
