Kurt's 3-in-one jaw system for common angle cuts

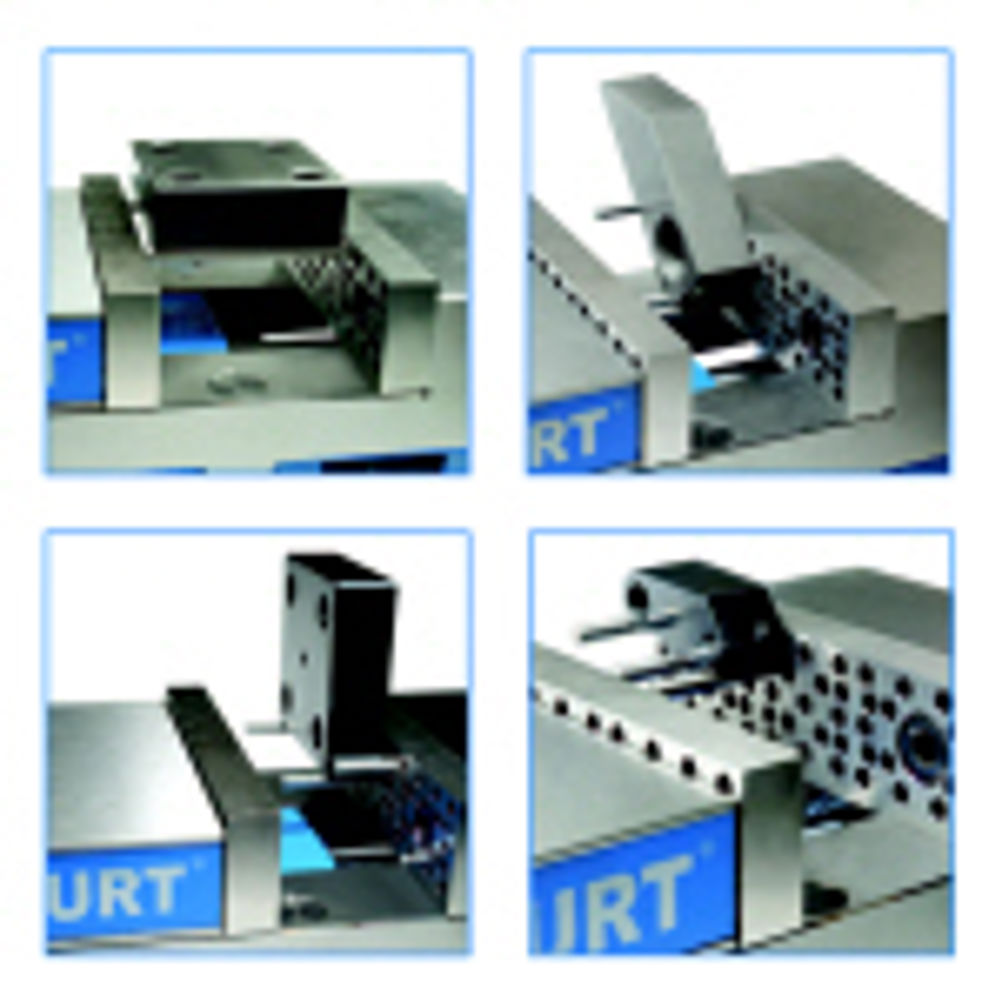

The 3-In-One Jaw System increases the versatility of any standard 6-inch Kurt vice. Designed as a simple, bolt on jaw system with a series of preset patterns with aligning pins, the jaws hold parts like conventional jaw plates but with the extra benefit of allowing aggressive machining while clamping at seven different angles. Overall jaw dimensions are 6 in by 1.735 in by 0.725 in ±0.000787 in. Multiple pins in the system include 4 ea. 6 mm by 22 mm; 3 ea. 6 mm by 40 mm; 3 ea. 6 mm by 58 mm, and 3 ea. 6 mm by 76 mm. Pin sets have a dimensional tolerance of ±0.0007 (0.018 mm). "Kurt's new 3-In-One Jaw System is ideal for small lot sizes and prototype work," said Steve Kane, global sales and marketing manager for Kurt. "The jaw system is a better and more cost-effective option than building a special fixture. It adds versatility to any existing standard Kurt 6-inch vice at modest cost." This Kurt 3-In-One Jaw System also doubles as a workstop, with the additional benefit of acting as a parallel.
