And to help maximise material removal rates, the machine is fitted with a 15 kW directly-driven spindle with a BT40 taper (HSK63 optional).

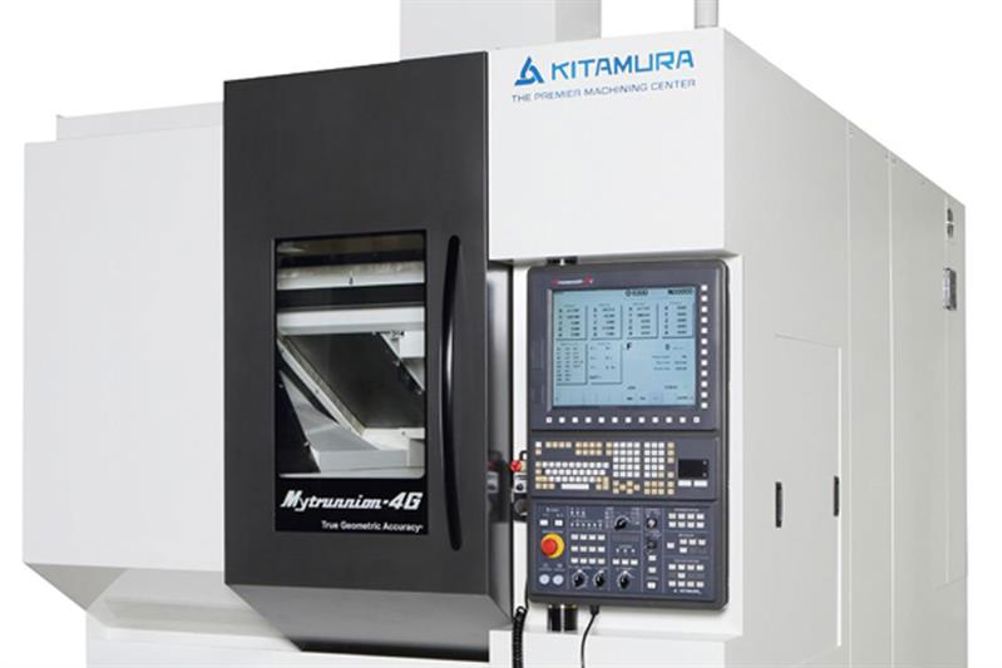

The Mytrunnion 4G offers accuracy levels of ±0.002mm and repeatability of ±0.001mm; achieved largely by the hand-scraping of all major sub-assemblies, coupled with linear scale feedback on all axes.
It can accommodate a maximum workpiece diameter of 500 mm on its rotary trunnion table and 400 mm work height in the Z-axis, with the ability to accept billets up to 200 kg. The Kitamura Mytrunnion 4G has a tilting table that rotates -120° to +30° in the A axis, with C-axis rotation of 360°.
