Kennametal introduces Mill 4-15 platform for shoulder milling
Kennametal's Mill 4-15 shoulder milling platform features a double-sided insert with four cutting edges able to take up to 15 mm depth of cut. The design of the cutting edge provides positive contact through 90º milling and a virtually stepless solution for stepping down applications. In addition, an integrated wiper facet supports superior surface finish quality.
Kennametal Mill 4-15 will be available as precision ground, or moulded inserts with corner nose radii from 0.4 to 2.4 mm. Topographies include GE with a high positive rake, effectively lowering cutting forces, while the reinforced cutting edge is suitable for medium to heavy duty applications.

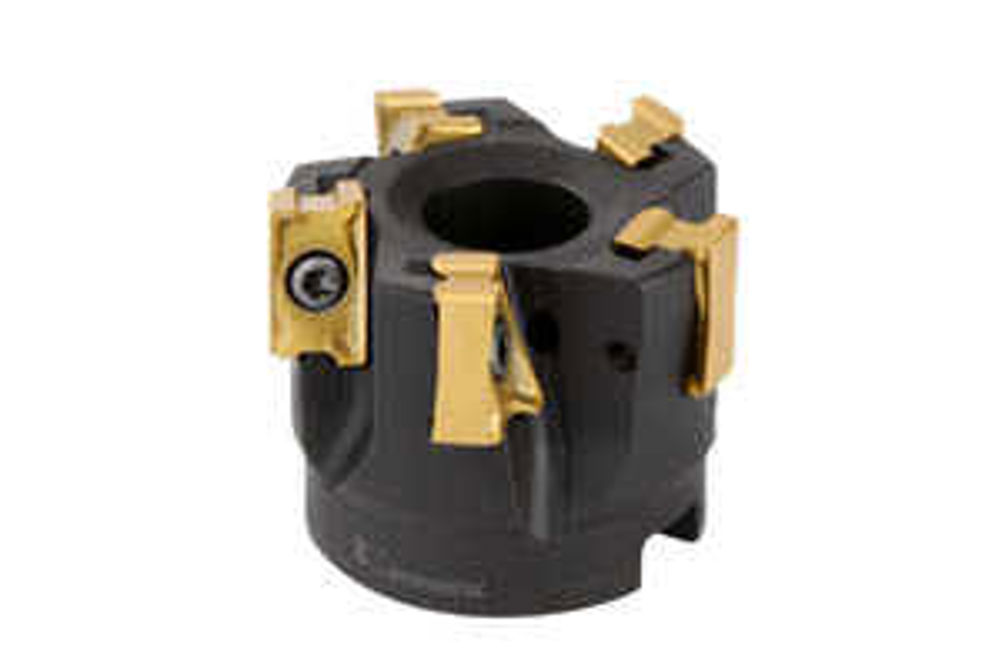

Mill 4-15 cutter bodies are manufactured to very tight tolerances and various body options are available. The choice includes screw-on, cylindrical shank end mills, Weldon shank end mills and shell mill cutters with internal coolant.
