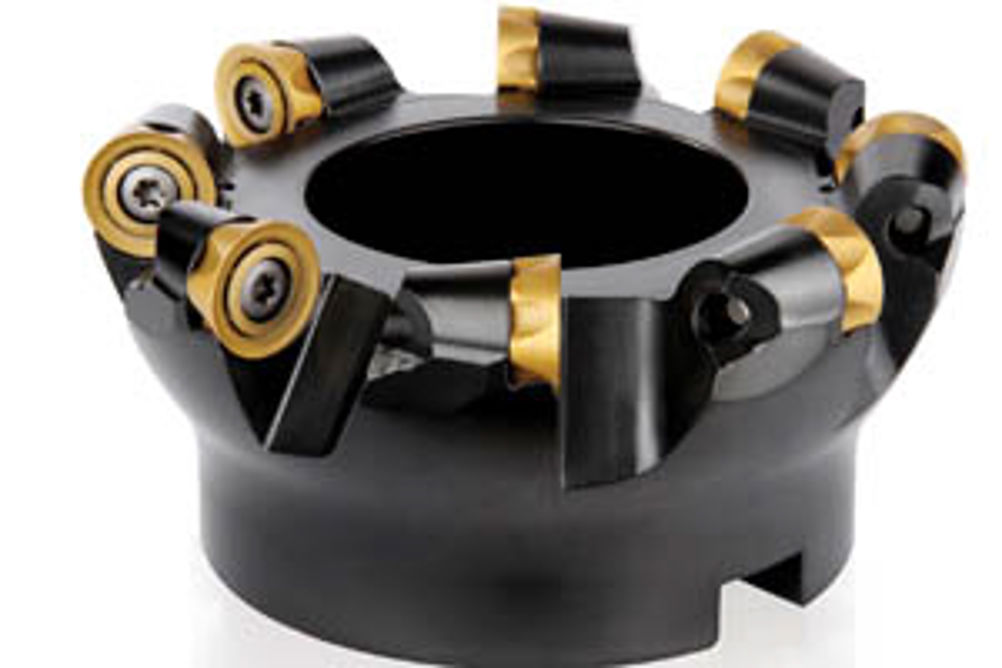

Kennametal engineers KSRM multi-purpose milling cutters for tough materials

All Kennametal KSRM inserts offer up to eight indexable positions for fast and accurate insert changes. These inserts have been designed with a high positive rake angle and stronger cutting edges for lower cutting forces when machining titanium. KSRM inserts are available in 12 and 16 mm diameters for KSRM face mills and screw-on, Weldon, and cylindrical KSRM end mills. These diameters are offered in SGE and ELE insert styles, which are the first choice for titanium applications. SGE inserts are designed for medium and heavy milling tasks, whereas ELE inserts should be used at low cutting forces and to avoid edge build-up. A 20 mm diameter insert is also available for compatible KSRM face mill models. These inserts are offered in three styles. ELF inserts are designed for low cutting forces to avoid edge build-up. SGF and SHF inserts are for general purpose and heavy-duty roughing applications, respectively. KSRM tool bodies are offered in a range of internally cooled face mill and end mill styles with pocketing, ramping, plunging, and helical interpolation capabilities. All are designed with a high clearance. An anti-rotation screw provides stability at higher feedrates and cutting forces. The anti-rotation components also provide eight indexable positions for 12 and 16 mm inserts. Face mills using 20 mm inserts are engineered for roughing titanium with large depths of cut through positive geometry inserts. These mills allow six indexable rotations and are used for diameters from 60 to 200 mm.
