Horn Supermini range addition

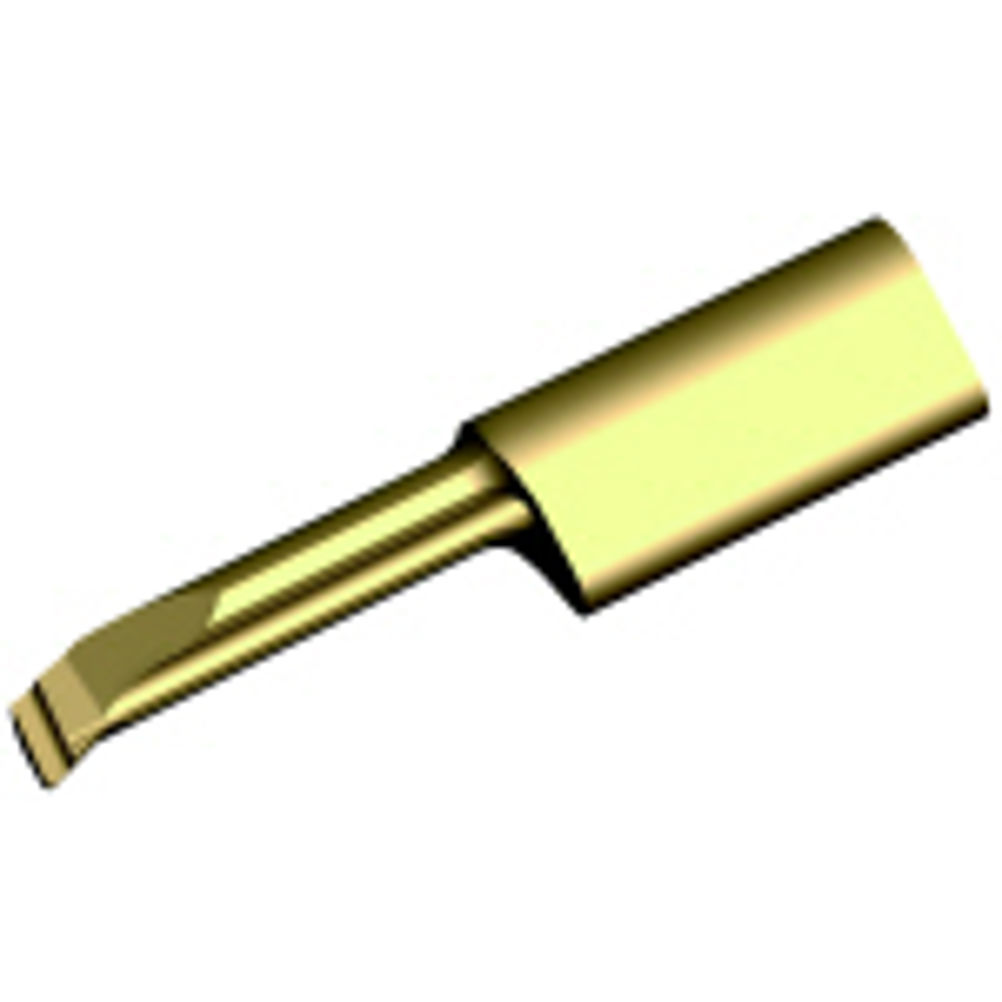

The Horn Type 105 insert offers significantly higher productivity when machining in bore diameters of 4 mm or greater.
The new HV chipbreaker form is designed to minimise stress at the cutting edge while promoting effective swarf evacuation. Combined with Supermini’s existing through-tool coolant capability, it offers the opportunity to double feed rates to as much as 0.1 mm without risk of blockage and tool failure.
Versions of the insert are available for machining in bores up to 30 mm deep and the standard coating is Horn Type TH35. The standard Supermini ovoid location/clamping surface of the insert makes it fully compatible with the wide range of Supermini B105 pattern tool holders, ensuring maximum performance in a very wide range of applications.
More than 1,000 standard insert configurations formats are now available in the Horn Supermini format. The minimum entry bore diameter of Supermini is now 0.2 mm.
