Precision-ground indexable inserts ensure a high level of accuracy and surface quality, while an additional, free-form surface chamfer on the cutting edge creates a stable wedge. In turn, this results in smooth milling and helps extend tool life. The surface treatment applied to the milling cutter body provides it with hardness and strength, ensuring long-term protection against abrasive chips.

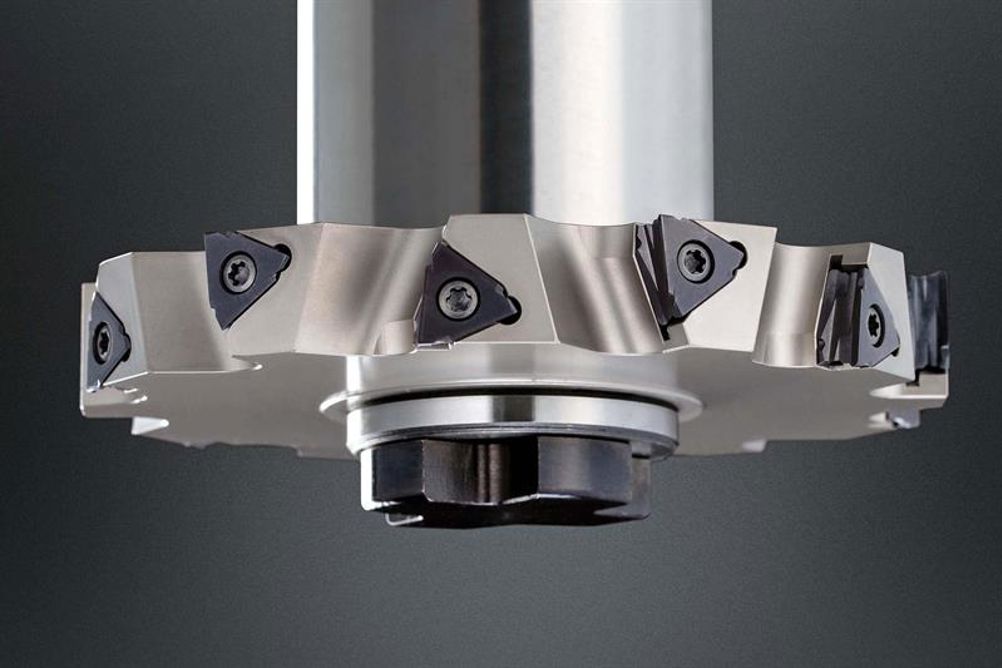

The side milling cutter is based on Horn's M610 system and is offered in two versions. The first has a diameter of 100 mm and five effective inserts in cut, requiring 10 inserts screwed on to the periphery on either side of the body. The other version is of 125 mm diameter and uses 12 inserts to provide six effective cutting edges.
On both versions the cutting width is 16 mm, while maximum groove depth is 34.5 mm. Indexable inserts are available with corner radii of 0.4 or 0.8 mm. For the substrate, Horn has opted for the existing AS4B. The main body versions are available from stock as a side milling cutter with bore, or as an arbour milling cutter.
Horn releases first side mill with six effective cutting inserts
1 min read
A newly developed tangential milling system from Horn is said to be the first side mill to deploy six effective cutting inserts. The patented system offers positive cutting and axial rake angles for a particularly soft cut.
