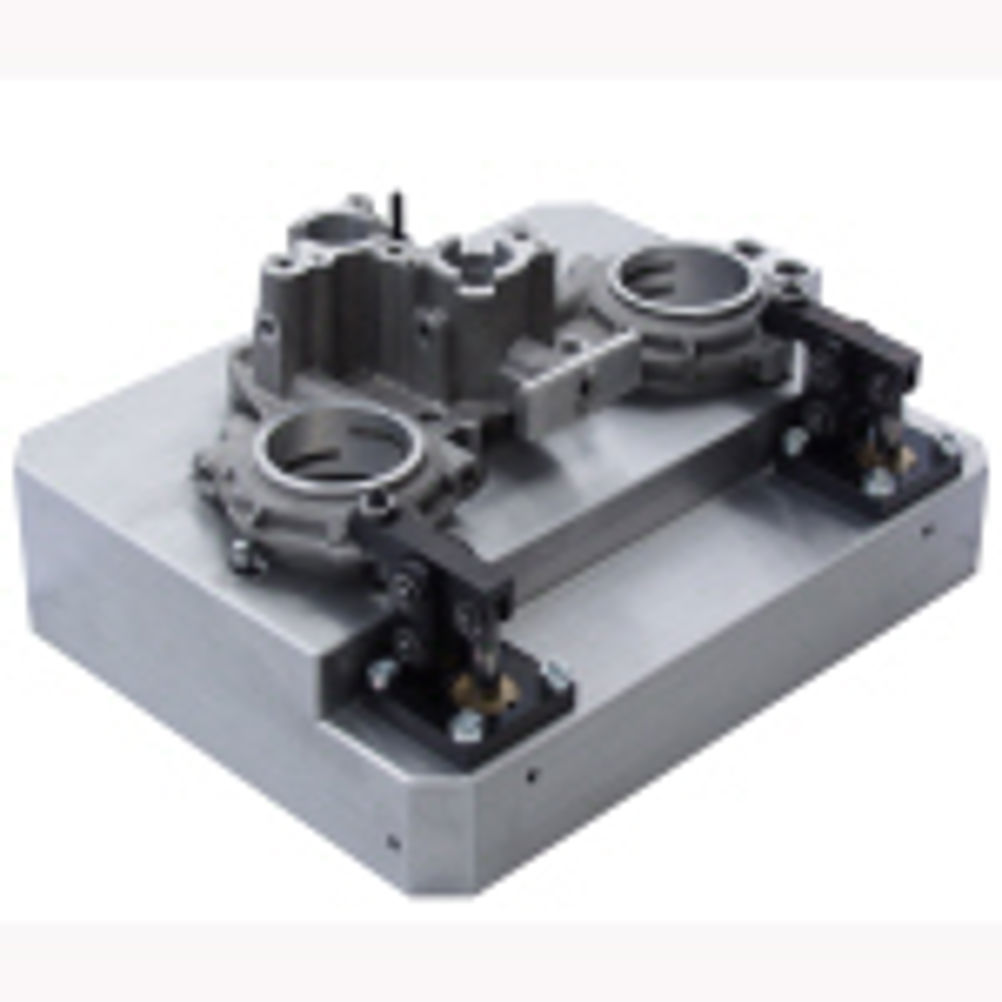

Roemheld has introduced a new Mini Hinge Clamp that enables fixture designers to incorporate hydraulic clamping into areas tight on space.
It is ideal for thin walled components that need to be clamped in areas of reduced space and has a body diameter (cartridge type) of just 32 mm and height of 52 mm, with a clamping capacity of 2.2 kN at 70 bar pressure. It is easy to design into a wide range of applications as all that is required to locate the clamp is a 32 mm h7 hole together with oil inlets.
The Roemheld Mini Hinge Clamp also incorporates a new metal wiper edge that deflects any high pressure coolant or swarf particles away from the sealing area, extending the longevity of the seals for minimum maintenance.
