GM CNC introduce Victor VCenter G-Series

2 mins read

GM CNC has launched the new Victor Vcenter G-series of machines available and it said the "unparalleled stability and rigidity" are the foundation blocks of the Victor Vcenter range.

The G-series is perfect for high material removal rates and applications where manufacturers are processing particularly challenging materials. If its flexibility you need, GM CNC has a G135 series in stock with a 4th-axis unit for you to see the potential of the range.

Like all machine tools manufactured by Victor, build quality and rigidity are assured with the Victor Vcenter G-series line-up. The powerhouse 3-axis G-series is available in three size variants to meet the diverse demands of the industry.

Unlike its competitors in the mid-sized VMC market segment, the G-series incorporates a meehanite casting with a wide base A-Frame design, a wide span column, four boxways and screw removers with a wide boxway – all factors that take performance and stability beyond the realms of other machines in its class.

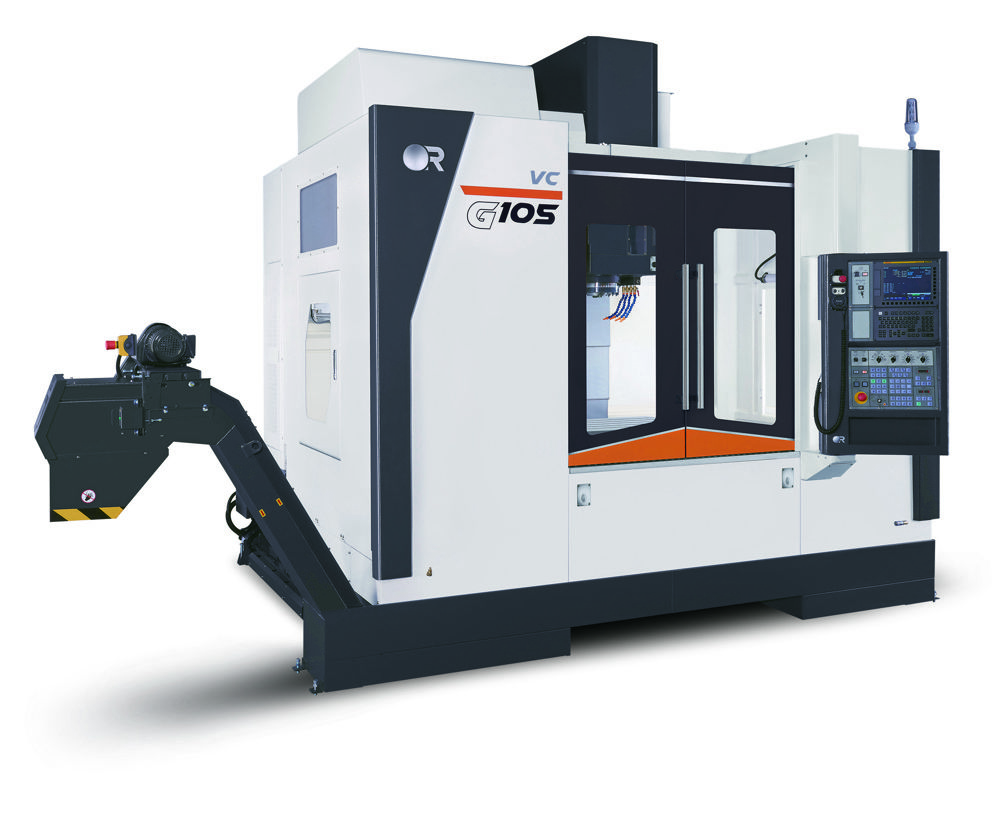

The three G-series variants include the G105, G135 and G165. The smaller G105 provides X, Y and Z axis travel of 1050 by 600 by 600mm and this stretches to a spacious 1650 by 850 by 900mm on the largest G165. This exceptional freedom of movement is matched by the accommodating bed sizes of 1100 by 600mm (G105), 1400 by 700mm (G135) and 1700 by 800mm (G165). Furthermore, the robust nature of the range permits the loading of components up to 1200, 2200 and 2500kg respectively for the three machines.

Common features on all three machines include a powerful gearhead spindle design that generates a power output of 18.5kW with an impressive torque level of 498Nm. Developed, manufactured and built in-house by Victor, the 6000rpm gearhead design spindle retains maximum torque levels throughout the speed range.

This makes the Vcenter series the perfect choice for machining hard materials and exotic alloys with material removal rates that far exceed that of any other machine in its class. Adding to this, the G-series incorporates a BIG-PLUS BBT-50 spindle taper that guarantees dual face and taper spindle contact for industry leading precision, repeatability and performance. This power and stability enhance precision levels with a platform that also generates surface finishes and industry-leading component quality.

The Victor Vcenter has an automatic tool change unit with 24 tool capacity and the option for 32 or 40 tool positions; all positions can accommodate tools up to 15kg. The axis feed motor generates 3kW of power on all axes with a rapid feed rate of 20m/min and axis acceleration of 0.28G, which is driven through extremely large 50mm diameter ballscrews to further enhance stability.

As standard, the Victor Vcenter G-series is supplied with the latest FANUC 0i-MF Plus CNC control unit, fully enclosed splash guarding, spindle oil cooler, screw-type chip removal, bottom guarding for coolant flushing, rigid tapping, 3 step warning lights, auto power off and levelling pads.

Like every Victor machine that is available from GM CNC, the Vcenter G-series is available with a host of options to meet the exact requirements of the end user. Options include a 4th and 5th axis interface for increased flexibility, 32 or 40 tool ATC, probing for automatic tool and component measuring.

Additional options include through spindle coolant, chip conveyor with cart, air conditioning for the electrical cabinets and linear scales for enhanced precision levels. Customers can also select a table shower, oil skimmer, automatic doors, air and coolant guns and much more.

Visit for more.
