Face mill for heavy duty tasks

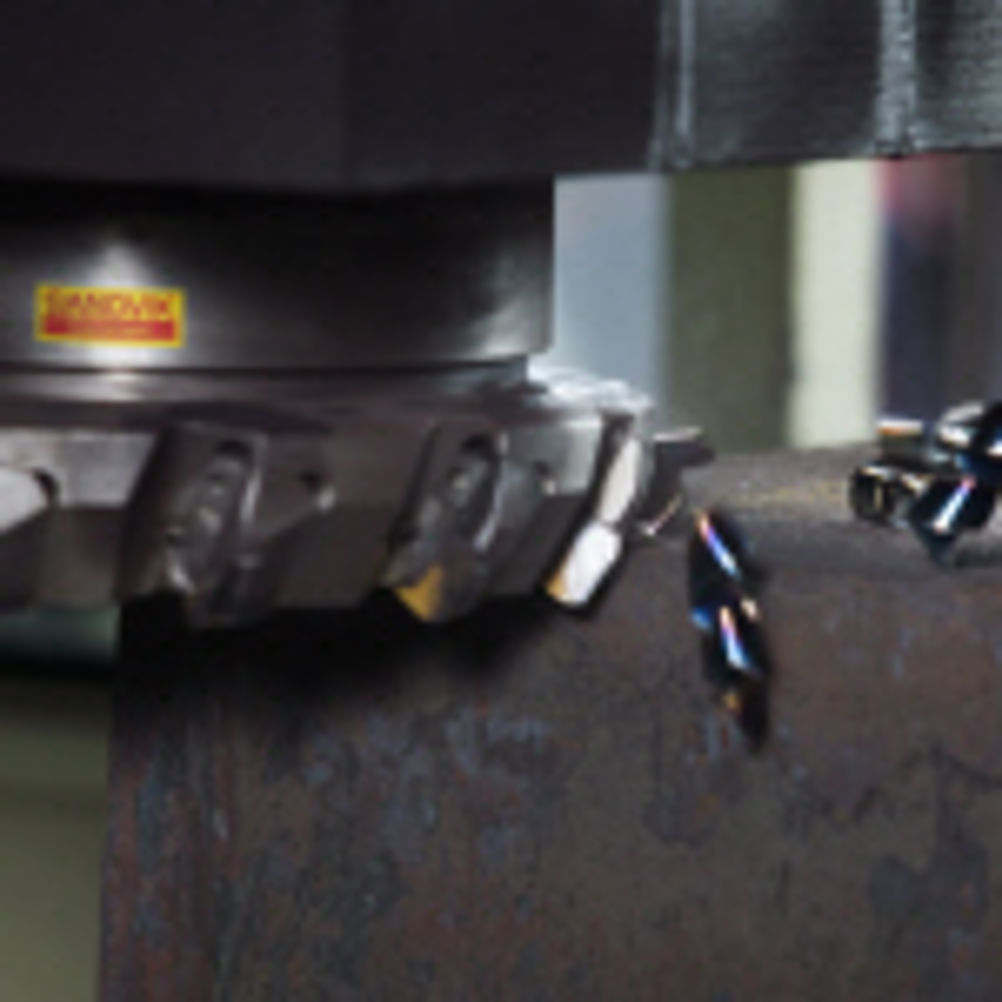

The CoroMill 360, 60°face mill from Sandvik Coromant combines high security and cost-effective performance for heavy-industry segments.

A robust cutter body in through-hardened steel provides strength for the most demanding operations, with wedge-clamped inserts housed in an exchangeable cassette system to maximize machining performance. The precise location of the cassettes against the cutter body ensures accurate cutting performance, while the quick-release inserts, which can be removed with one turn of the wedge screw, helps to reduce tool change times and provide maximum flexibility. The four-edged inserts give a light-cutting performance and are available in 19 mm and 28 mm, with each size using the same cutter body to keep tool inventory to a minimum. They offer a maximum cutting depth of 18 mm at high feed per tooth to ensure a highly productive performance. Their wide parallel land design ensures a high surface finish quality, unique for a heavy duty milling cutter. CoroMill 360 is available in diameters from 160 – 500 mm in close and extra close pitch design, Arbor and CIS Arbor shank styles. Inserts come in high-performance, New Insert Generation grades for steel, stainless steel, cast iron and heat resistant super alloy machining.
