Entry level high speed machining centre
1 min read

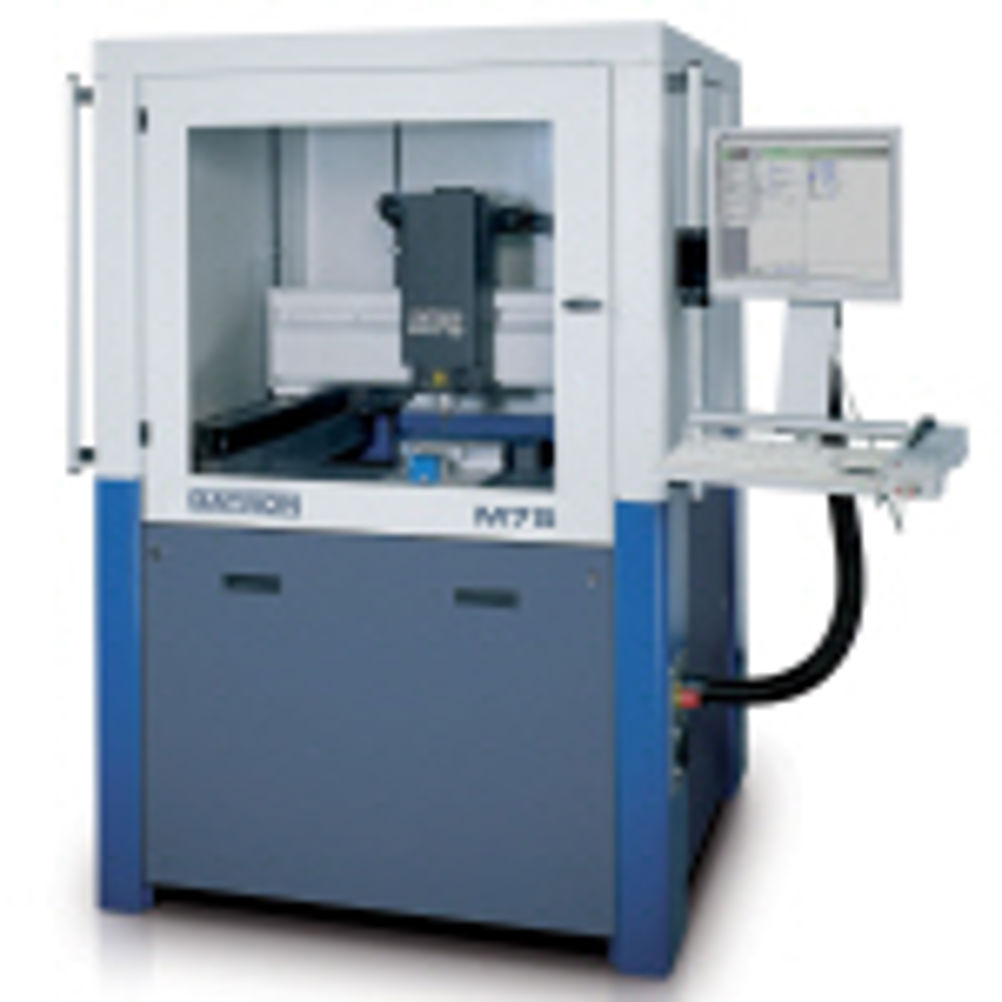

The Datron M75 high-speed machining centre, at around £ 35,000, is an entry-level machine for applications as diverse as rapid prototyping, jewelry, foiling and embossing dies, fascias, control panels, PCBs and precision engraving.
Providing powerful control and fast cutting capability over 6 axes, the single-phase M75 is able to engrave over a curve, such as a pump housing or cylinder. It is extremely quiet in operation and is equally efficient cutting ureol, CFRP or acrylics as well as stainless steel, aluminium, brass, copper and the harder metals.
Built with their trademark granite table - offering highest precision, stability and robustness – the M75 is equipped with a 1.2 kW spindle capable of operating up to speeds of 30,000 rpm, a 520 by 650 by 240 mm worktable, 10-position toolchanger with tool length sensor, all within a exceptionally 1,300 mm square footprint.
An optional probe – either Datron or Renishaw - can be fitted at extra cost, depending on the purchaser's requirements. In operation, the probe will automatically swing down as programmed, without the need to clear the tool out of the way.
A full tooling package is also available from Datron but the M75 is also compatible with other tooling.
