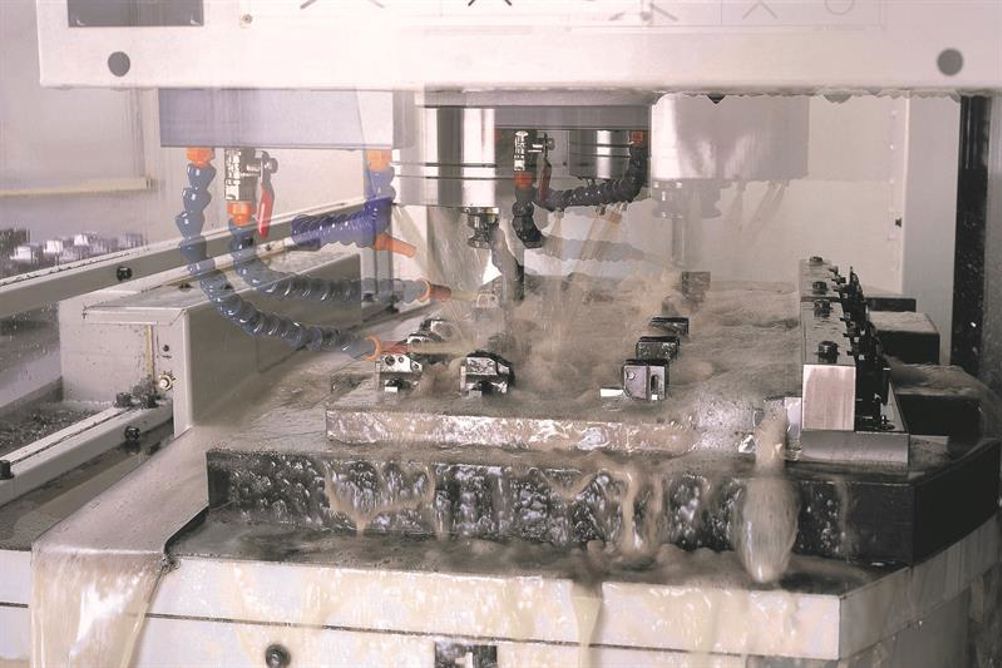

The twin-pallet machining trunnions have a 300 kg load capacity per side with an automatic pallet change time of 8 sec. Pallet change repeatability is maintained at 0.008 mm.
Axis travels are 1,020 mm in X, 610 mm in Y and 610 mm in Z. The machine’s ATC system has a capacity of 48 tools (upgradeable) with a tool-to-tool time of 2.5 sec and a chip-to-chip time of 6 sec.
The belt-driven, 40-taper, 70 mm diameter spindle (as standard) runs up to 9,000 rpm with 187 Nm of torque.
