EasyMark 5-in-1 Tooling Kit for marking and scribing part surfaces

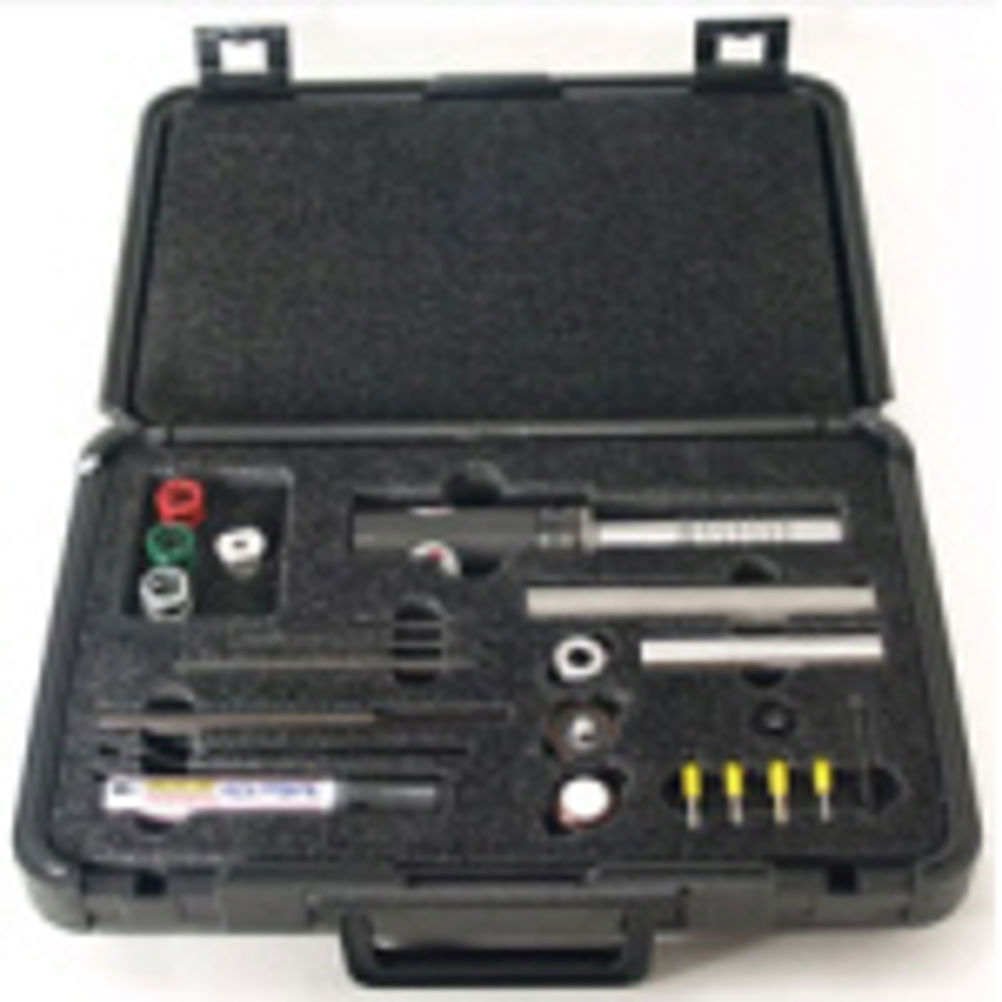

Using the programming software in a CNC punch press, this tool system can be set up to automatically perform any of the following five marking operations: • Write numbers, dates and other important identifying information on a part surface, using a special marker. • Etch a sheet metal surface, with permanent marking information, using either of the, 120° and 150°, supplied diamond inserts. • Cut or scribe protective film on sheet metal surfaces, using a supplied brass insert to expose localised areas on the part, without damaging underlying metal material. • Create cone-shaped indentations on the part surface, to locate the part against other components for later assembly. • Perform high-speed dot-matrix marking, using a supplied carbide insert. The EasyMark kit contains all components and tools for setup, including special A-Station guide and canister, marker pen, 1 brass, 1 carbide and 2 diamond inserts, 3 types of springs for the diamond and brass inserts, roller ball and blank dies.
