Delcam enhances Delcam Electrode software capabilities

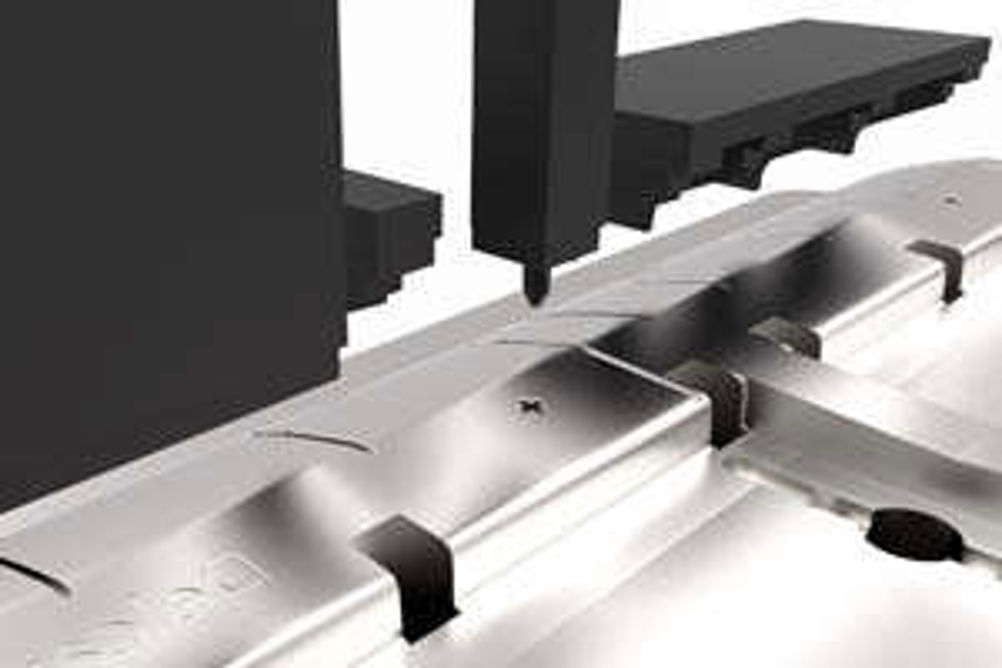

Burn-vector or side-sparking electrodes are used to spark undercuts within moulds, including those needed for submarine gates, or to avoid any possibility of a collision when sparking the base of a deep rib or similar feature. They use an arbitrary axis for their operation, rather than being aligned with the principal axes. Delcam Electrode now allows these electrodes to be designed and used with the same quick and easy wizard-based process available for conventional electrodes. The electrode action can be simulated in the software and the final design passed to Delcam's PowerMill CAM system for machining in the same way as standard electrodes. Electrode frames are used to provide the basis for machining and inspection datums. This allows these areas to be modelled and then coloured separately from the electrode blank and are therefore more easily identified in PowerMIll for automated manufacture using a specific template. It was already possible to display and identify for machining burn region, extension faces and clearance faces by the use of colour. The ability to automate programming within PowerMill as part of the electrode solution saves the user time. However, when machining a large number of electrodes, it is inefficient to wait for toolpaths to be calculated on each individual project. To overcome this problem, the option to use batch processing of multiple projects has been introduced within the electrode machining wizard. The user now simply allocates one machining template in PowerMill to a series of electrodes if the designs are similar, or applies the appropriate template to each example if they differ significantly in size or style. Processing the toolpaths starts as soon as the first project is loaded. Subsequent projects are displayed in a list, with calculations beginning on the next item in the list automatically. At any stage, the user can move items up or down the list, depending on the urgency of the various tasks. If the calculations for a particular electrode cannot be completed – for example, if the software detects a collision – the problem is recorded and PowerMill moves on to the next item automatically. Thus, a long series of calculations can be left to run overnight if necessary. Alternatively, the complete series of projects can be collected into a folder and moved to a second computer for calculation, while the user carries on with other tasks on his main computer. The ability to generate customised drawings automatically is another benefit of the electrode solution. This has been enhanced so that information generated while the user progresses through the electrode design wizard, such as the project name or the different spark gaps to be applied, is used to fill in details for the drawings immediately. Generation of the drawings when the design is complete is thus much faster. All of the direct modelling enhancements to PowerShape help to speed the creation of the electrode design. For example, the 'replace-face' command ensures extensions are at the same height when merging electrodes to be machined from a single blank, and the 'solid-split' command makes it easier to divide unwanted material away from the electrode to create a simpler shape for machining. Delcam Electrode combines Delcam's PowerShape CAD software, PowerMill CAM and PowerInspect inspection software to provide an integrated solution for the design, machining and inspection of electrodes. At the heart of the Delcam solution is the .Trode file. This contains all the information for each electrode project, including not only the electrode design but also the machining and inspection information, plus the set-up sheets for its manufacture and use. Having all the required information in a single file simplifies data management as well as increasing overall efficiency.
