Cost-effective 5-axis tool regrinder

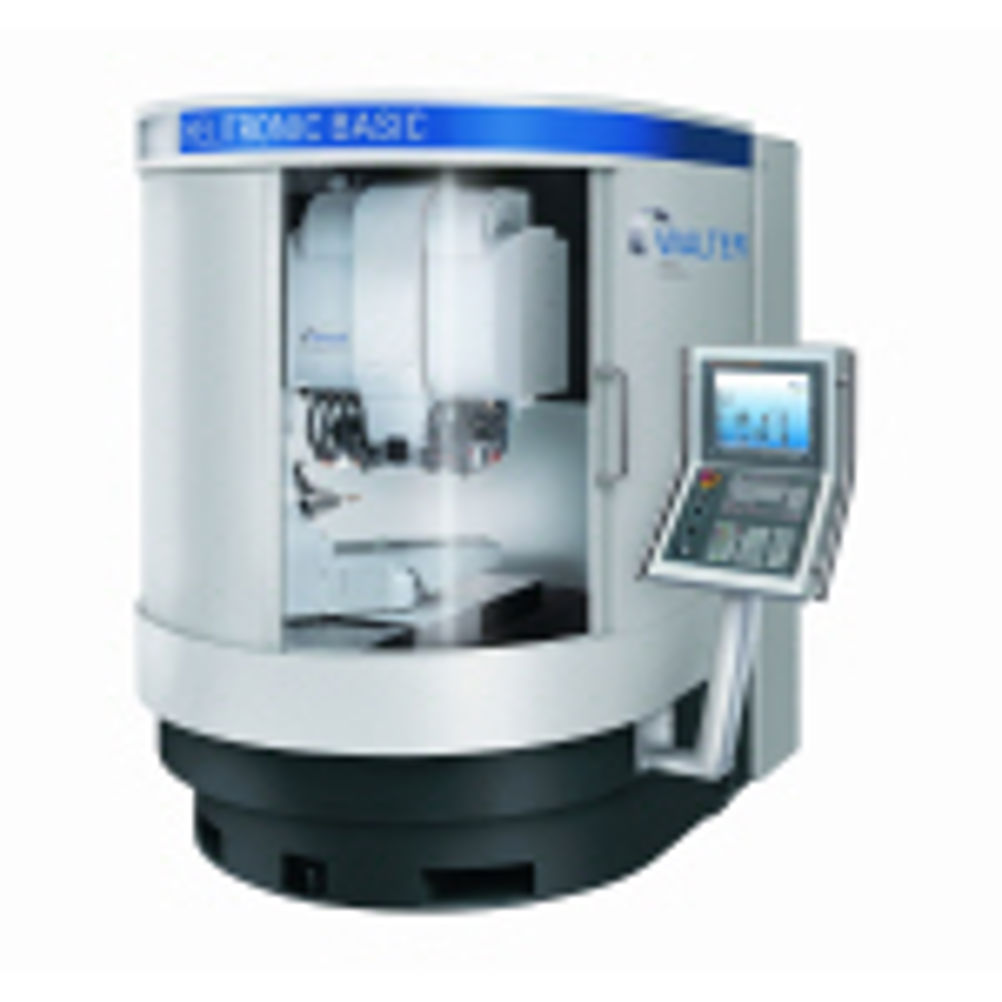

Walter’s Helitronic Basic entry-level tool grinder provides users with an unrivalled route for cost-effective 5-axis tool regrinding at a budget price, and completes Walter’s portfolio of tool grinders to meet every need in terms of output, capacity and budget. The Helitronic Basic is designed to accommodate tools of up to 320 mm diameter by 350 mm long . Based on similar high-quality construction principles to Walter’s existing Helitronic models and incorporating the company’s renowned tool grinding software, the new machine is a derivative of the highly successful Helitronic Power and features CNC and drive hardware from Fanuc. With Fanuc 310i CNC and 15 inch touch screen monitor, the machine has a 70 mm grinding spindle powered by 7 kW drive plus worm gear drive in the A axis. As standard it is supplied with Walter Window Mode P1 and P3 grinding programs (end mills and drills), and options include coolant tank, Eco tool loading system, automatic clamping and worktable.
