Corner former is available in three models

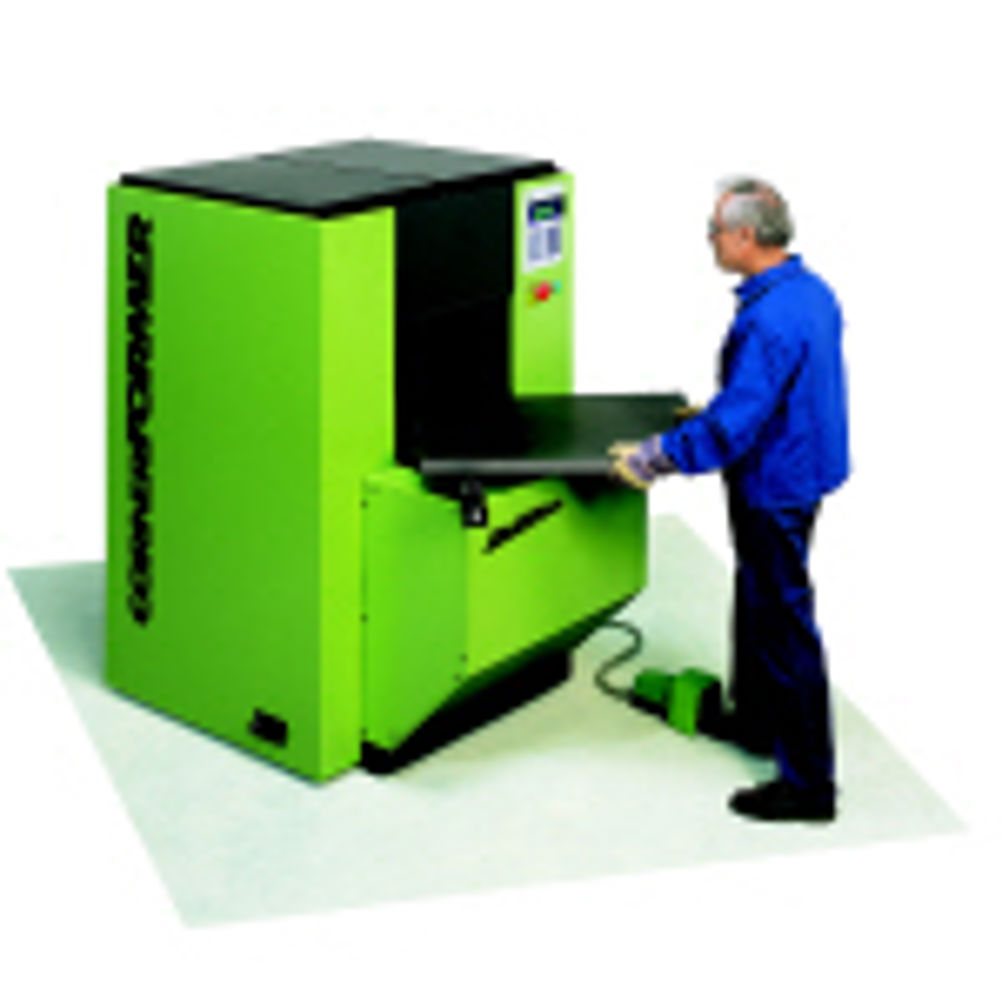

Multiflex is a flexible cornerformer for panel fabrication, forming corners on a multitude of products including; electrical cabinet doors, computer casings, trays, lids, oven doors, bathroom accessories, furniture, suitcase covers, cladding, bottom pans for humidifiers as well as traffic and other signs. The three models are the MF25, MF50 and MF100 for producing a panel outer corner radius up to 25 mm, 50 mm and 100 mm. The cycle time for each corner with the MF25 and MF 50 is about 13 seconds, whilst the MF100 is about 22 seconds.They can be used on galvanised and cold rolled mild steel and aluminium up to 3 mm thick and stainless steel up to 2 mm. The minimum panel size that the machine can handle is 64 mm by 64 mm, with no limits to the maximum length and width. Multiflex can form four closed corners of a single zinc coated mild steel door in around 52 - 88 seconds, depending on the model, after which no manual zinc coating in the corner area is required. Using mild steel with an enamel coating, the cold formed corner is evenly distributed and is resistant against temperatures in excess of 960 ºC. When using stainless steel there is no material colour change and no pickling is required. All three models use universal tooling to give the operator flexibility in individual panel fabrications that are unaffected by the material being used, the thickness of the material or the flange height of the panel and there is no panel size limitation.
