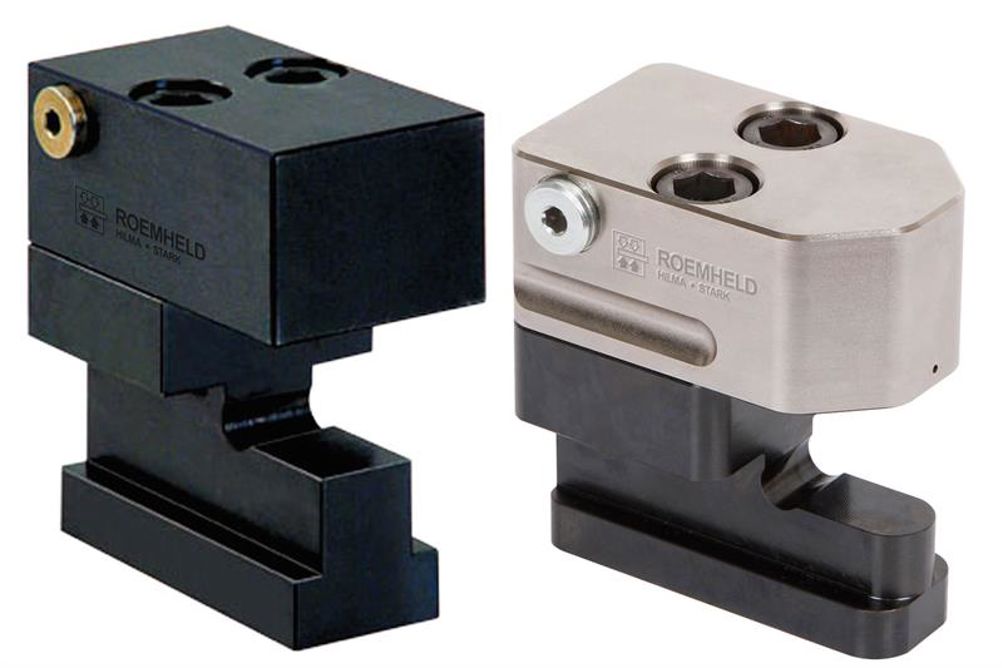

The clamp is suitable for retrofitting, without the need for standardisation of the width or depth of the dies. It consists of a clamping block and a T-slot adapter that is used to manually position the clamp in the T-slots on the press bed or ram. Versions are available for DIN widths of 14, 18, 22 and 28 mm.
Clamping takes place by applying a maximum pressure of 400 bar to the piston, achieving clamping forces of between 19.6 and 78 kN, according to the version selected. The piston is released by means of spring force. Depending on the element, overall stroke is 8 or 12 mm.
