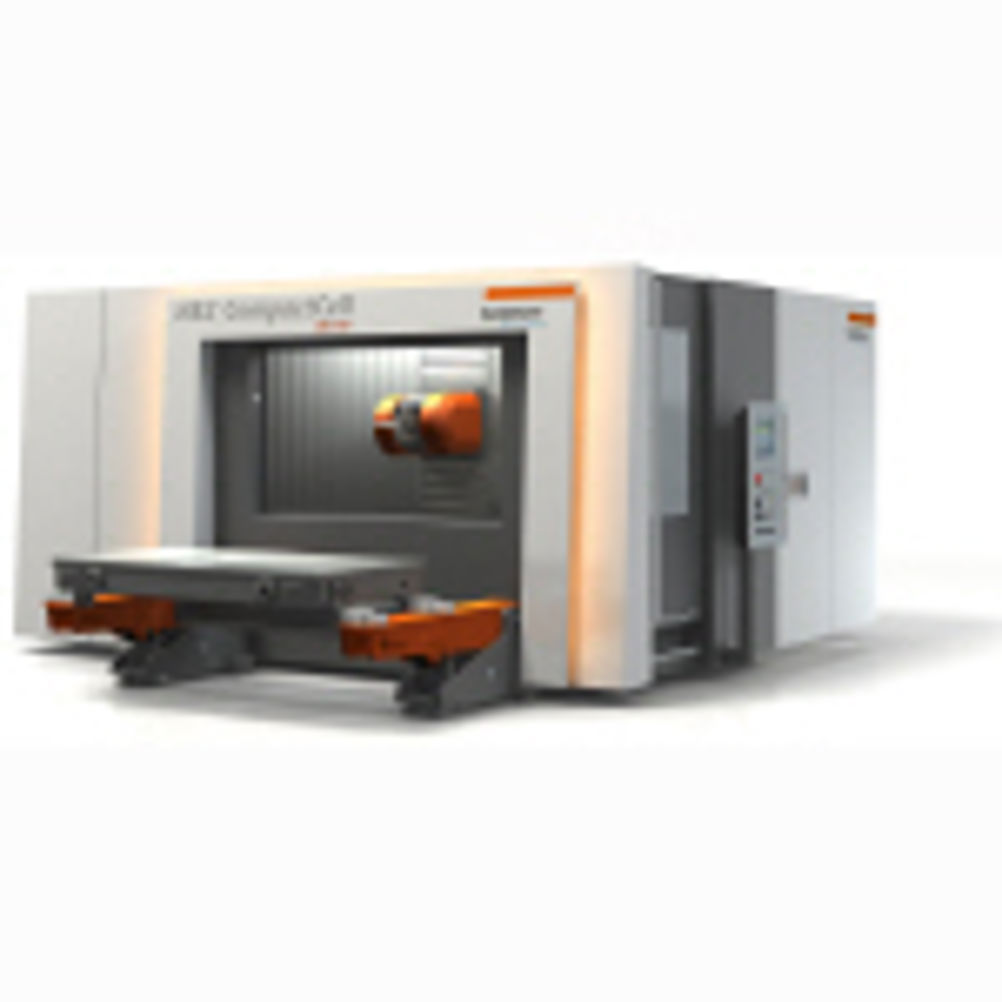

The innovative HBZ CompactCell machining centre combines the advantages of horizontal machining of aluminium components of up to 2 by 1 m requiring intensive machining, with an integrated automatic pallet changing system.
The machining centre permits optimum chip and coolant removal, thanks to the vertical arrangement of the pallet and resultant horizontal machining approach. Efficient complete machining from all five sides is possible, in only one setting.
Thanks to its compact design, the HBZ CompactCell requires only a small installation area and no special foundation. Accessibility to the pallets and workpiece clamping devices is also good.
Modular machine construction with optional component such as chip conveyor systems and suction units facilitate optimum adjustment to your machining requirements.
Machine data is:
Table size: 2,000 by 1,000 mm
Working envelope: 2,650, 1,100, 550 mm in X, Y and Z, respectively.
Rotating axes: A-axis, +/- 120°; C-axis +/- 200°
Traverse speed up to 60 m/min
Acceleration rates up to 0.5G
Spindle power 75 kW, spindle speed 30,000 rpm
Control: Siemens Sinumerik 840D or Heidenhain iTNC 530
Tool changer: disc-type tool magazine, max 50 slots, SK 63A
