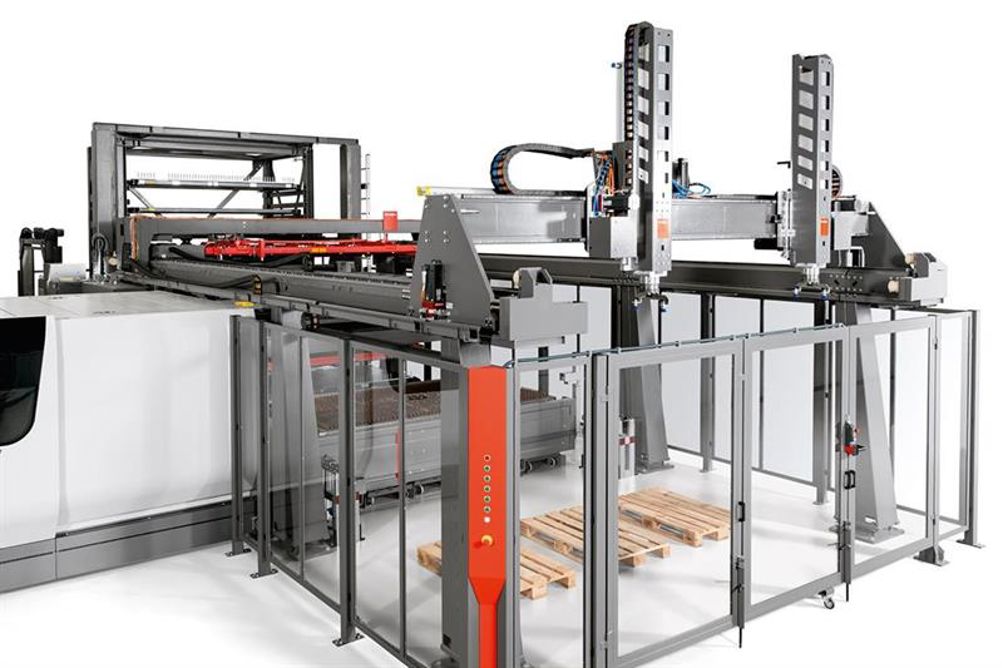

ByTrans Cross can be integrated between a laser cutting centre and a warehouse, but is equally suitable as a stand-alone solution to ensure efficient supply of raw metal sheets to the laser cutting machine.
The basic configuration has two loading carriages for storing material. However, with the addition of the new, optional BySort bridge and two sorting heads with gripper modules, unloading with the ByTrans Cross becomes even more versatile.
This automatic sorting system, which can be factory ordered or retrofitted, deposits processed sheet metal components onto a pair of pallets next to the laser cutting centre. It supports users manufacturing large series where the cut parts need to be unloaded quickly and stacked.
The repeatability with which BySort places the parts is of advantage, as the accuracy of placement for larger parts is difficult to achieve manually. Precise positioning on palettes facilitates the automation of subsequent processes, as it allows reliable position detection.
BySort increases the speed of the entire unloading process. The cut parts are unloaded and sorted and, subsequently, using a different route, the ByTrans unloads the skeleton. This ensures that the laser cutting system’s shuttle table is more quickly available for loading of the next sheet, which the ByTrans Cross brings from its own stock or from the connected warehouse.
Both ByTrans Cross and BySort are controlled using the laser cutting system’s touch-screen. Bystronic's ByVision Cutting user interface, which is already being used on the latest generation of Bystronic’s fibre lasers, integrates the cutting processes and the connected automation. It removes the need for an operator to waste time walking between separate terminals for the laser cutting system and the automation equipment.
