Tool length measurement and breakage detection processes are carried out while the tool is stationary. Only large tools such as face-mills that must be measured off-centre are measured during rotation. The measurements are performed, for example, after a new tool has been loaded or for measurement between machining steps.
Noteworthy is the probe’s multi-directional measuring mechanism. Unlike standard probes, the ZX-Speed has a rotationally symmetrical design that offers constant and precise measuring characteristics in all measuring directions, without a preferred direction. This allows the measurement of even very small tools, starting from a diameter of 1 mm, to a repeatability of 0.4 micron.
A wear-free opto-electronics trigger signal generation system guarantees consistently high precision levels, even after millions of switching cycles.
The toolsetting probe is available in three versions: a wired option; an infrared system; and a radio transmission device. The wired version is recommended if it is possible to mount the probe at a fixed location in the machine, without causing interference. It is supplied as standard unit with a highly flexible connection cable and a 1.5 m steel spiral protective hose.

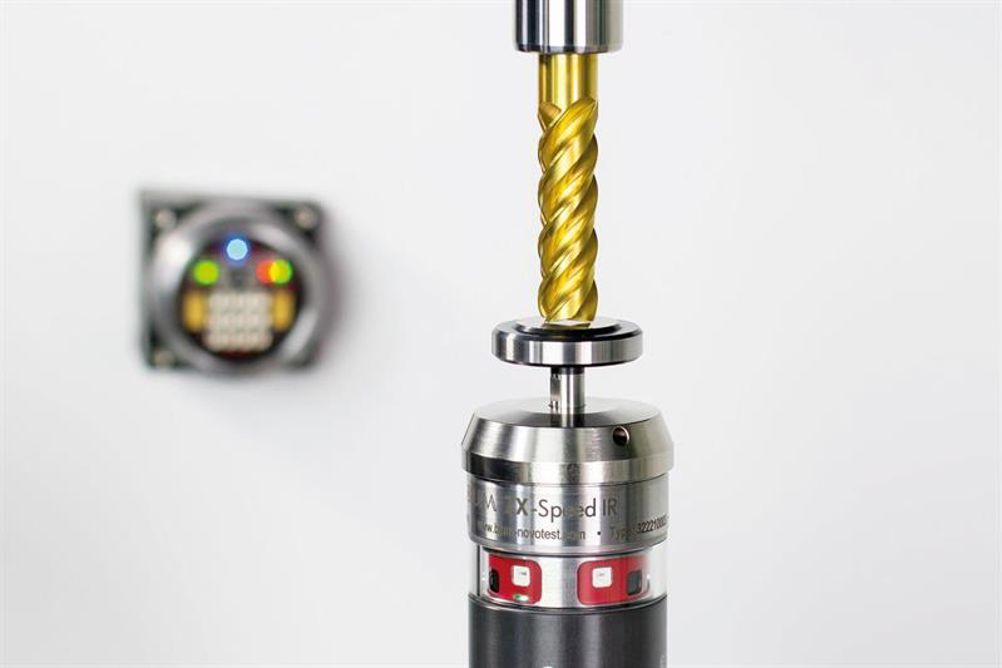

If a Blum workpiece touch-probe is already fitted to the machine or if wired installation is not possible, the wireless variants are available. The infrared ZX-Speed IR is the perfect solution for machines with pallet changers. And when operated in Duo-Mode, it allows two measuring systems to be applied sequentially using only one IR-receiver.
The radio transmission ZX-Speed RC with BRC radio technology is generally used if a direct line of sight between the probe and receiver cannot be guaranteed. Transmission is highly resistant to interference and the system also allows sequential activation of up to six Blum radio measuring systems using one receiver, as well as the simultaneous use of two radio measuring systems on a single machine operating in Twin mode.
Blum offers a comprehensive range of accessories for its probe systems. This includes replaceable measuring surfaces, different mounting brackets as well as blow nozzles for cleaning the tool and measuring surface.
