Blade-type parting and grooving tools for smaller machines

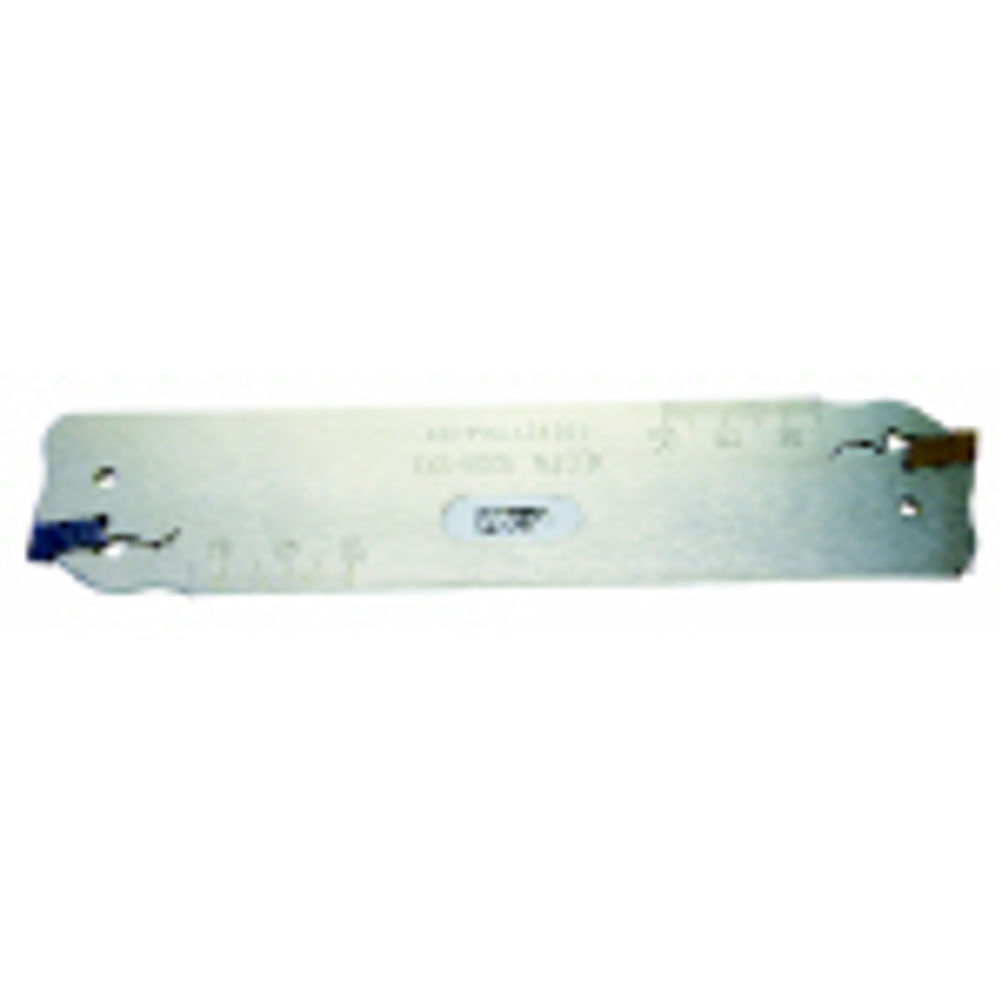

A 26 mm blade has joined the 32 mm blade option in the MSS-SX Highlight range of blade-type parting and grooving tools and brings the functionality and handling of the MSS-SX highlight system to smaller machine tools, while maintaining the maximum stability under cutting conditions found with the larger blades. The new blades will take inserts of 2, 3 and 4 mm in width and can part-off material up to 90 mm diameter making them suitable for a wide range of machines and components. One of the key benefits of the MSS-SX highlight range is the use of laser-etched scaling on the blade making adjustment a relatively simple and accurate procedure, even while the blade is still in the machine. Further enhancing accuracy is the insert seat location, which was developed using finite element analysis. The result is an optimum design for the seat and clamping system that ensures the insert is always securely located in the same position, even under the most arduous of cutting conditions. Aiding ease-of-use is the cantilever key design which allows the insert seat to be opened up with minimal force. The design is such that it can be used on either side of the blade to take into account the differing machine turret designs.
