In the event that the machine tool spindle and the ATC gripper are misaligned when a tool holder is loaded into the spindle, the spindle taper can be damaged. Clamping a misaligned tool holder can also lead to increased run-out errors and contribute to a shorter lifespan of machine tools, tool holders and cutting tools. Furthermore, incorrect positioning often results in damage and excessive wear.
The ATC Alignment Tool saves money by ensuring that machine tools, tool holders and cutting tools are properly aligned.
Christian Spicher, head of sales and marketing at Big Kaiser, says: “At Big Kaiser we believe that smooth interaction between all components is essential for achieving superior quality machining. Therefore, we also offer precise machine testing equipment, which when used regularly for the inspection of machine tools, prevents damage and noticeably improves process reliability."

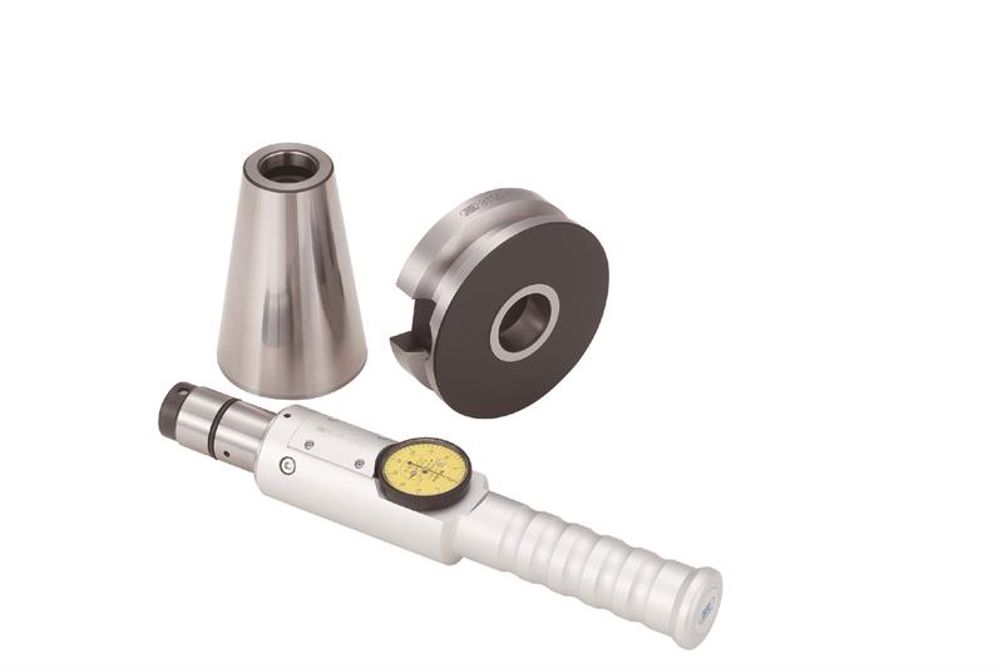

The ATC Alignment Tool consists of three easy-to-use components for checking correct alignment: AL Shank, AL Plug and AL Flange. These three parts are supplied in a convenient storage case. The tool is available for BT30, BT40, BT50, DV40 and DV50 cones, and is fully compatible with Big Plus spindles. An option for HSK is also available upon request.
