Automated EDM electrode design and manufacture

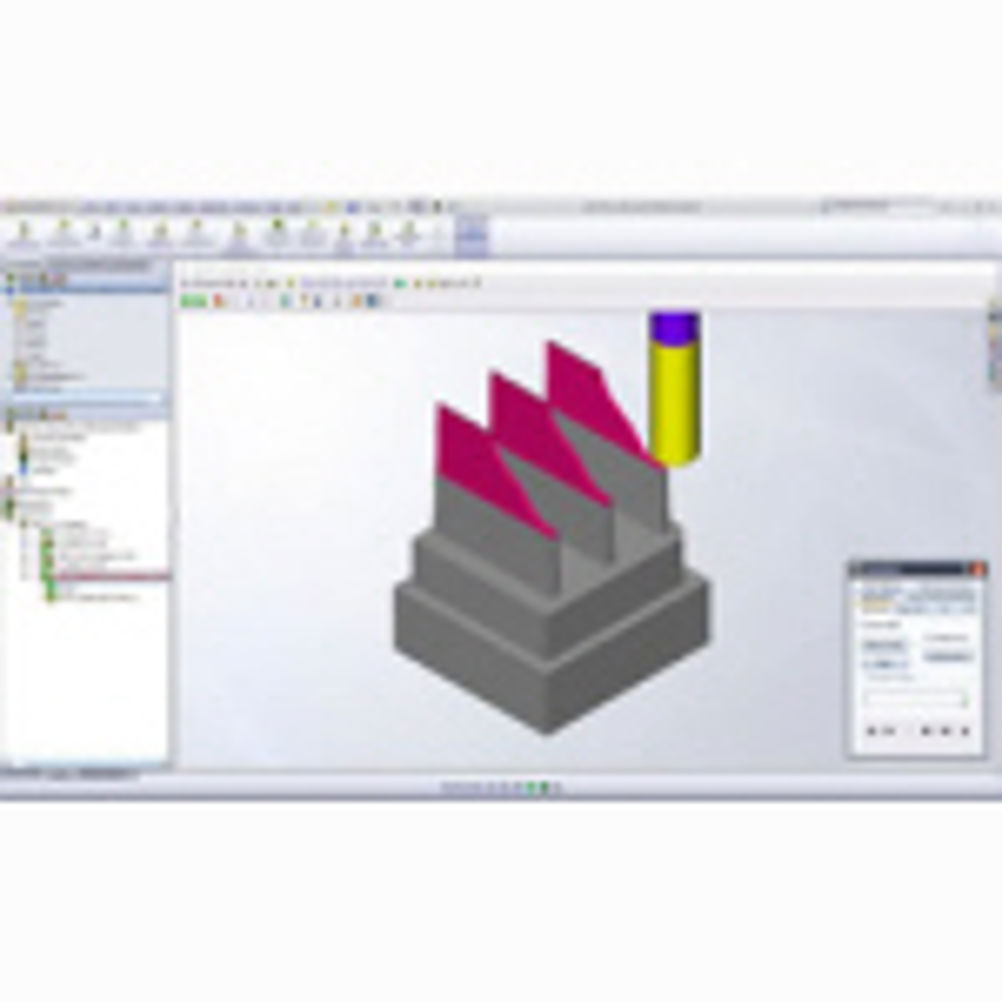

Unveiled at SolidWorks World 2009, held February 8 - 11, in Orlando, Florida the new capability for mould tool makers is totally integrated in SolidWorks. Electrode Design Automation - SolidCAM facilitates the design of 3D solid electrodes from flexible surface extensions. The software offers an easy to follow, step-by-step process and addresses all types of electrodes from the common to the most complex. It supports existing libraries of blanks and holders as well as professional documentation for the operator. Even the most experienced electrode designer will benefit from the knowledge-driven automation provided by Electrode Manufacturing Automation - Once the electrode design is finished, SolidCAM starts the machining of the electrode in the SolidWorks window. SolidCAM supports a wide range of 2.5D milling, 3D milling and HSM strategies to manufacture every type of electrode. SolidCAM supports the generation of rough and finish electrodes and leverages the use of templates of machining strategies to generate optimal and efficient toolpaths.
