CIMulator3D software has an upgraded interface with fresh colours and icons, and is easier to use through intuitive functionality. Time-saving benefits and interactive visualisation across the entire grinding process are supported.
Says Thomson Mathew, ANCA software product manager: “This upgrade responds directly to what our customers want and need for effective tool simulation. CIM3D V9 allows for customisation based on regularly used features no matter which industry. The simulation quality of ANCA’s software is unmatched and you can simulate complete grinding sequences.”
“The offline capabilities of using the latest CIM3D version mean important background calculations are easily verified, increasing machine productivity. This not only maximises machine time but for those working from home, CIM3D can be run independently on any computer - so it is possible to do all the programming remotely.”
“We have automated many manual steps and introduced process verification and analysis in a central hub to get improved cycle time, and better wheel and tool life. Collisions can be detected automatically and overall CIM3D V9 is more enjoyable and easier to use.”
The new software offers clearer visualisation with the customisable timeline panel – effectively a central dashboard for quicker and easier tool analysis. New tool programs can be verified for size, shape, machine clearance, cycle time estimates, and more.
Chris Wagner, tool grind lead at Acutec Precision Aerospace, Inc. in the U.S has been using CIM3D for 20 years and can’t imagine going back to an earlier version after trialling the latest release. He said: “CIM3D V9 is worth its weight in gold. The new look and feel is current and clean. One of the best features is progressive grinding – it gives the ability to see the exact material being removed as the wheel moves through.”
“The resolution of the graphics is far better than any previous version. Determining protrusion length, cycle time estimation, using the scroll function on a mouse to increment the position, magnification and cross-hair positioning are other great features that make using CIM3D V9 more efficient and productive.”
ANCA’s software experts are in-house ensuring the features of CIM3D are responsive, user-friendly and tailored to the cutting tool industry.
The new features save time while simulating the programmed tool path exactly as it would be ground on the machine
UPDATED LOOK AND FEEL
BENEFITS: Ease of use, improved visualisation and highly intuitive design
PROGRESSIVE MATERIAL REMOVAL
BENEFITS: Allows the user to view the state of the tool at any point of the grinding timeline
CLEAR VISUALISATION WITH THE TIMELINE PANEL
BENEFTIS: Central analysis hub for quick and easy access to save time
TOOL BALANCE ANALYSIS
BENEFITS: Ability to manufacture high performance cutting tools
SAVE TIME WITH BACKGROUND CALCULATIONS
Simplifies workflow by doing calculations in the background rather than having users kick this off. This saves time and the automatic display doesn’t allow for errors that are accidentally missed. Some of the tasks calculated automatically without needing to be initiated by users are:
BENEFITS: Simplifies workflow, saves time, less likely to miss collisions and reduced waiting time
MATERIAL REMOVAL RATE
BENEFTIS: MRR can be used to optimise the feedrates for better wheel life and stable process
MEASUREMENT CAPABILITIES
BENEFITS: Quick and easy measurement methods to save time

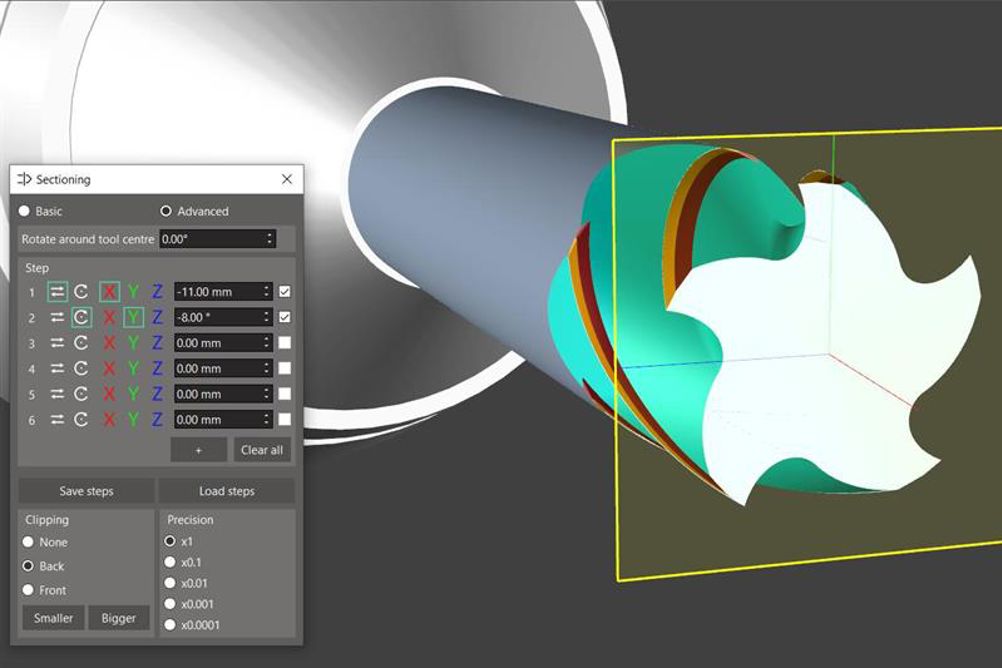

CHANGES TO THE SECTIONING PLANE DIALOGUE
BENEFITS: Flexibility to measure any geometry on the cutting tools in any plane
MACHINE MODELS AND ACCESSORIES
BENEFITS: Additional accessories for improved collision detection analysis
