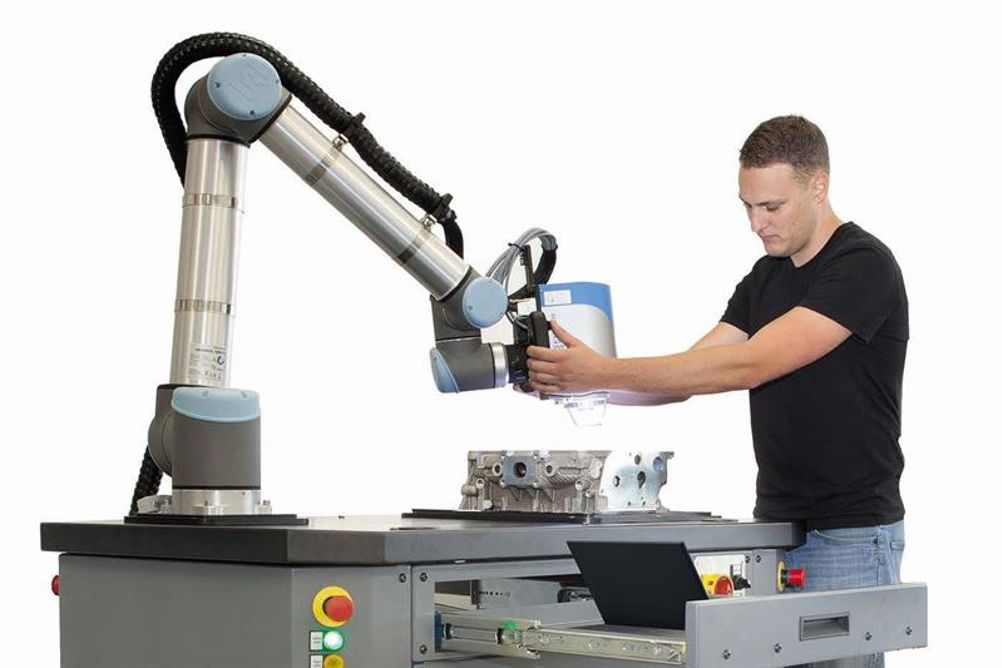

The system can be moved to a position to measure large components such as engine housings, disks, blisks in the aircraft Industry and cylinder heads and engine blocks in the automotive Industries. It can also be used for cutting tool measurement for wear studies and edge condition. The system can be used manually or programmed to perform defined automatic measurements
Measurement capabilities, depending on optical magnification, include height steps down to 20 nm, height range up to 16 mm, Ra values down to 0.08 micron, with software included for surface finish and profilometry.
Video shows slightly different set-up
