3D non-contact measurement of large parts

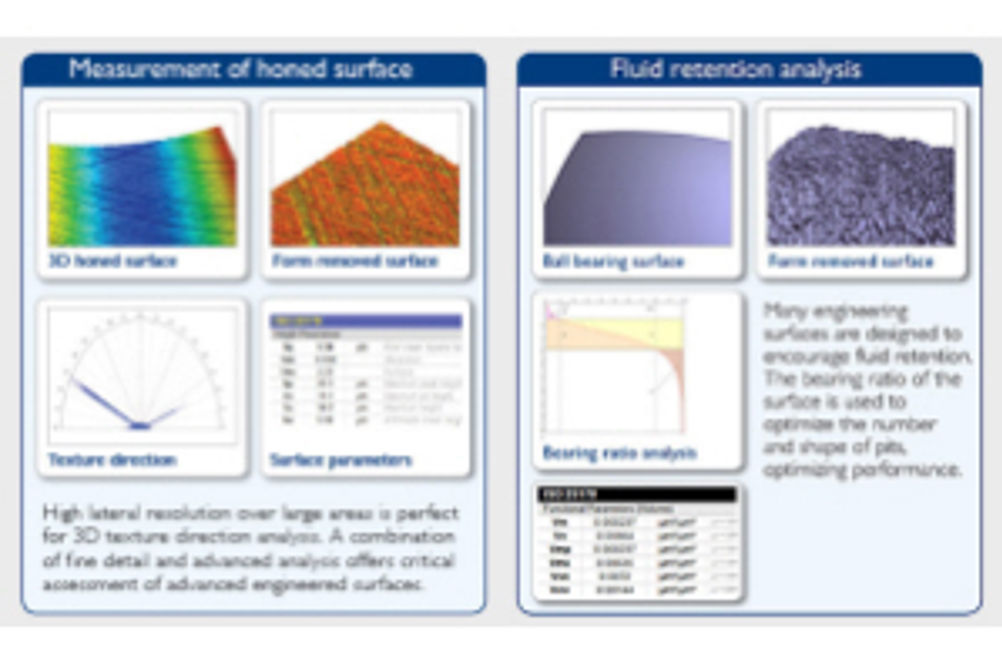

Suitable for parts up to 200 mm high, with industry leading bench-top performance, deep bore analysis is now possible, using the 40 mm LWD objective lens. A high speed measurement option is available, while AutoStitch and Multi-site measurement offers ease of use and flexibility. The system offers industry-leading data quality via next-generation interferometry. For example: up to 2,048 by 2,048 pixels for high resolution and large FOV; <0.2 Angstrom RMS repeatability, <0.1% step height repeatability; integrated anti-vibration for optimum noise performance; plus single measurement mode for data you can trust. Taylor Hobson also emphasises the unit's robust design that ensures low cost of ownership. The system, which can offer other Z heights and working distances on request, is suitable for: crankshafts, camshafts, structured surfaces, fluid retention (bearing ratio), bearing surfaces, medical implants, textured steel, material research, coatings, plus brake discs and pads.
