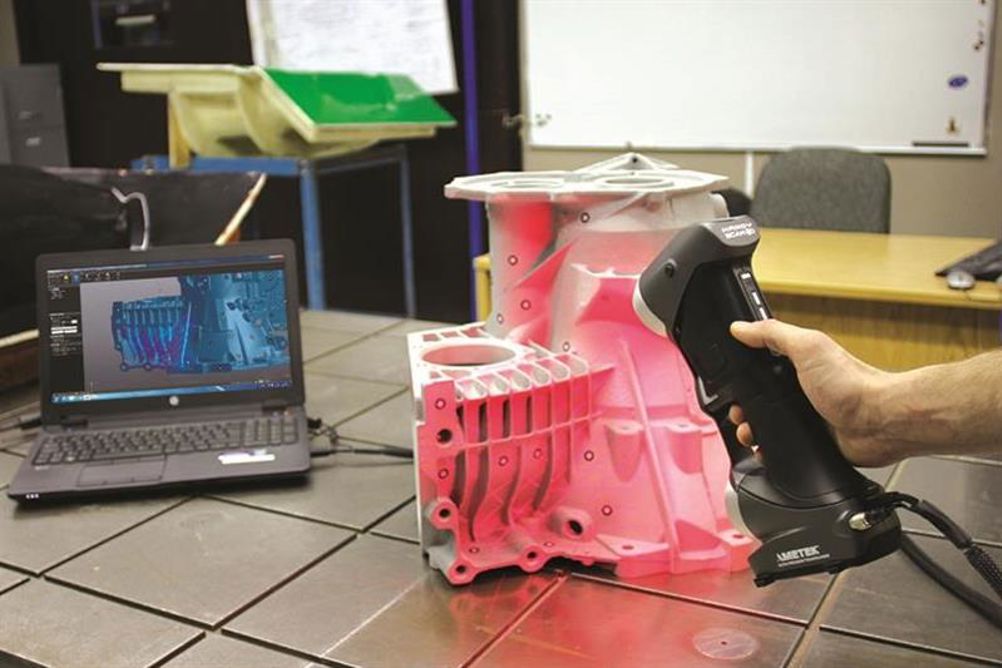

The HandySCAN 300 is an entry-level machine that takes portable measurement to the next level with its 122 by 77 by 294 mm dimensions and 850 g weight. Providing a scanning area of 225 by 250mm with a measuring rate of 205,000 points/sec, the HandySCAN 300 incorporates three laser crosses as its light source. It uses a laser class that is completely safe for eyes. The measuring resolution for the HandySCAN 300 is 0.100 mm with an accuracy that can measure down to 0.04 mm with a volumetric precision of 0.02 + 0.100 mm. This precision level can be met with a stand-off distance of 300 mm and a depth of field of 250 mm. In essence, this makes the Handy SCAN 300 ideal for measuring anything from 0.1 to 4 m dimensions.
Larger sibling the HandySCAN 700 variant has identical physical dimensions, but offers a scanning area of 275 by 250 mm with a measurement rate of 480,000 points/sec. Furthermore, it offers customers an increased volumetric accuracy of 0.02 + 0.06 mm and a resolution of 0.050 mm.
The HandySCAN 3D units utilise Creaform's VXelements software that complies with a number of output formats and is compatible with software including Catia, Solidworks, PROEngineer, NX, Solid Edge and Autodesk Inventor. The connection is made via a standard USB3 port.
Integrated into VXelements is Creaform's new VXmodel software, a post-treatment software that allows the 3D scan data to be finalised and used directly in any 3D printing or CAD software system.
The engineers from Measurement Solutions will be on-hand at MACH to present innovative product lines and deliver expert advice and guidance for anything metrological.
