Haas debuts fast-spindle version of 5-axis machining centre at MACH (stand 5350)

1 min read

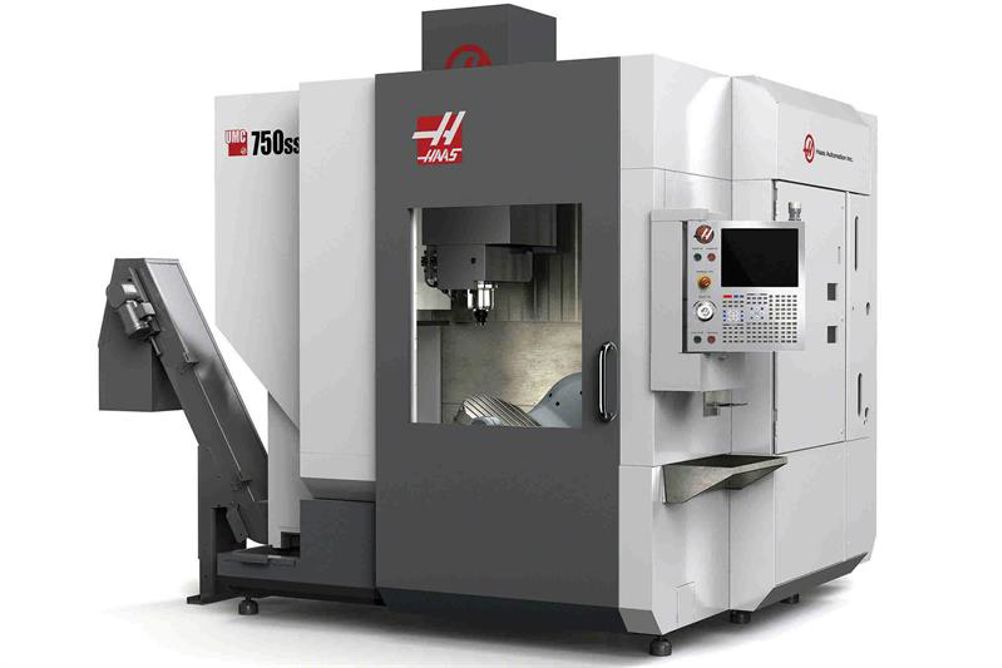

Making its UK debut is the Haas UMC-750SS universal machining centre, a 15,000 rpm version of the best-selling UMC-750.

The UMC-750SS is a 5-axis 40-taper vertical machining centre with 762 by 508 by 508 mm travel and an integrated high-speed trunnion table. The machine is equipped with a powerful 15,000-rpm inline direct-drive spindle driven by a 30 horsepower vector drive system, and comes standard with a high-speed 40+1 tool side-mount tool changer.

The UMC-750SS’s 630 by 500 mm trunnion table features standard T-slots, as well as a precision pilot bore, for fixturing versatility. The trunnion provides +110/-35 ° of tilt and 360 ° of rotation for excellent tool clearance and large part capacity. It also offers 150 °/sec rapids to quickly position parts to nearly any angle for 5-sided (3+2) machining, or provide full simultaneous 5-axis motion for contouring and complex machining.

The UMC-750SS is equipped with a 15,000-rpm inline direct-drive spindle, and comes standard with Haas Automation’s powerful high-speed machining control software.

Visitors to the 200 m2 Haas stand at MACH 2015 will also witness cutting demonstrations on ten of the company’s latest model CNC machine tools, including: high-speed vertical machining centres; 5-axis, high-speed machines; mid-sized verticals designed to take big cuts; high-productivity turning centres with live tooling and Y-axis; powerful, small-footprint mini-mill and toolroom machines.
